Automatic quantitative packaging machine - Henan Tianzhong Machinery Equipment Co.,Ltd .

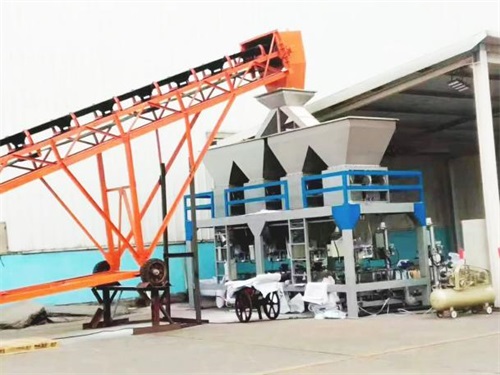

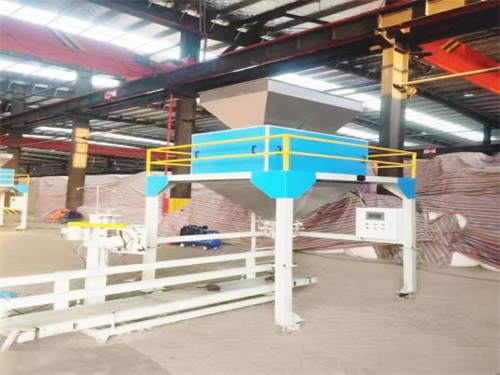

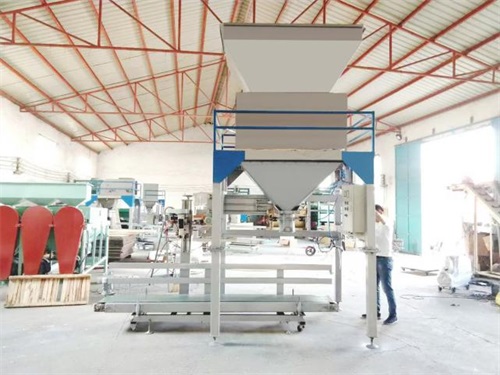

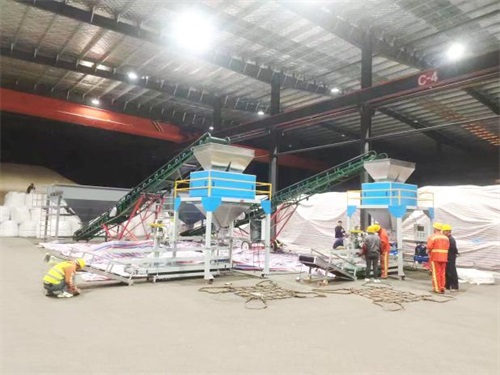

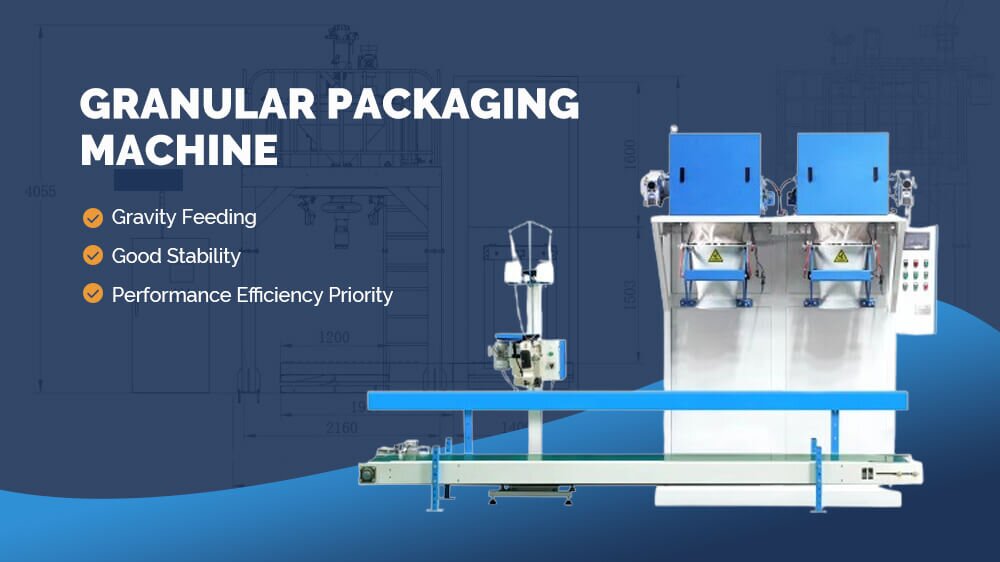

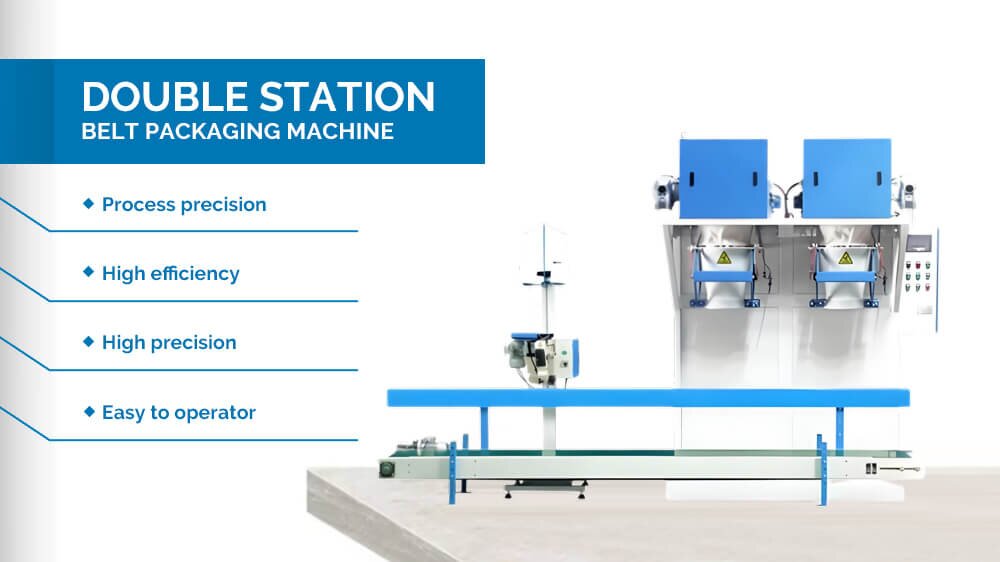

Description

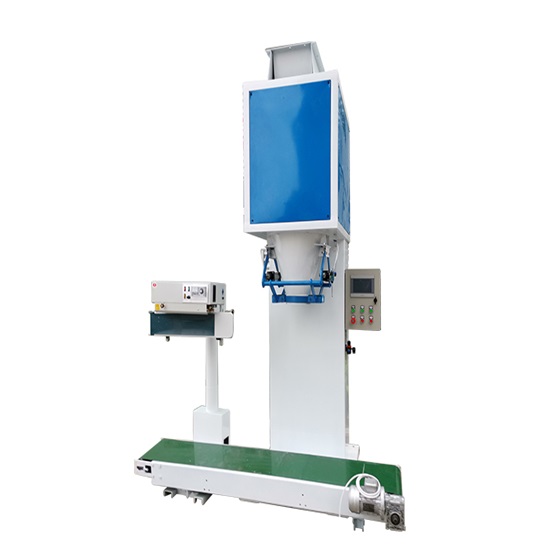

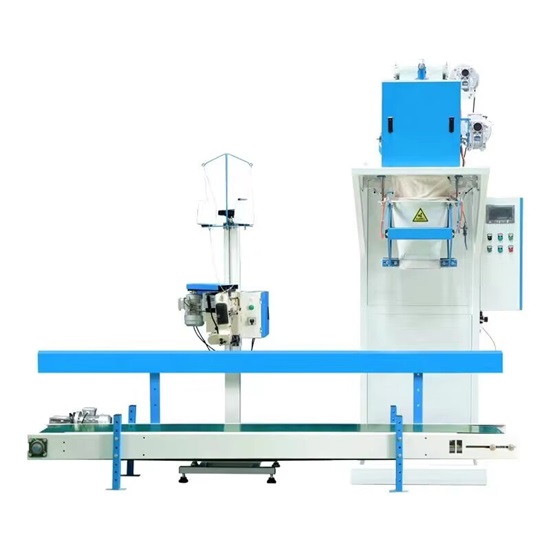

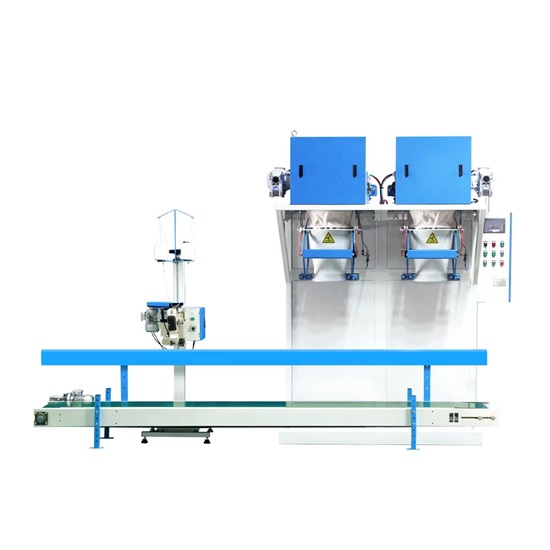

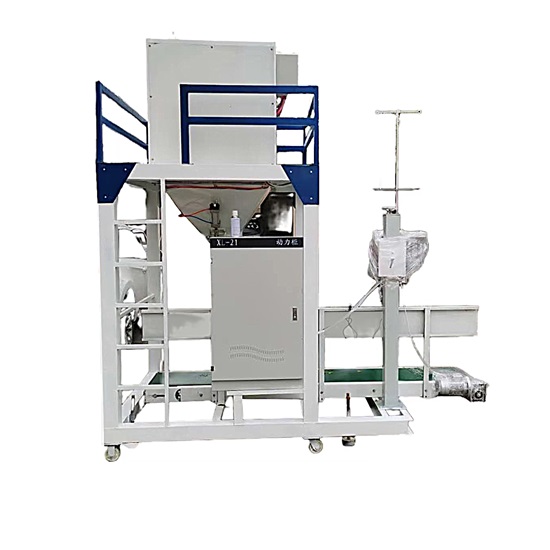

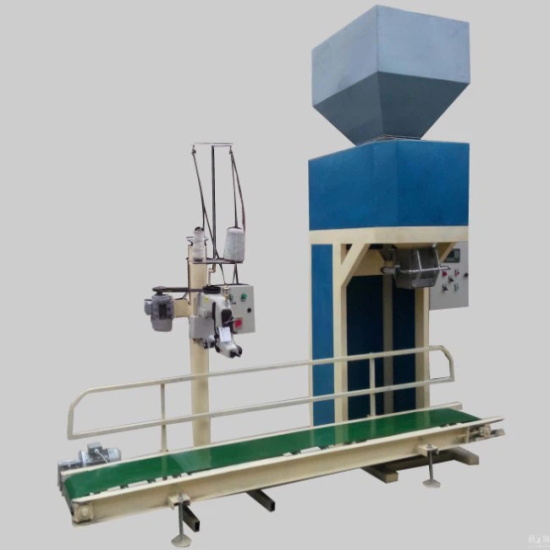

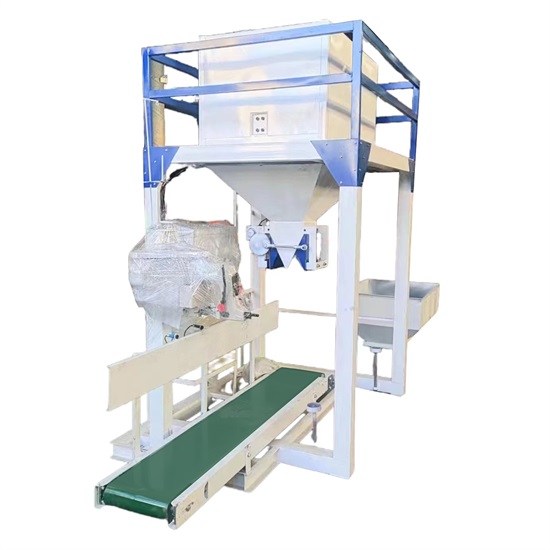

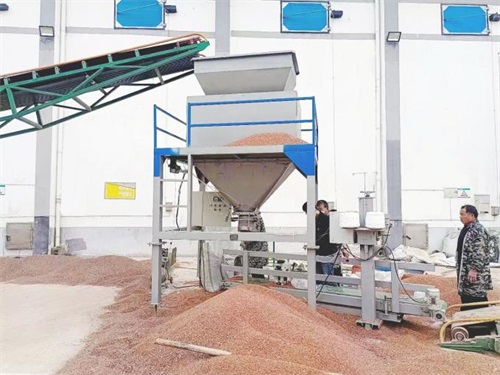

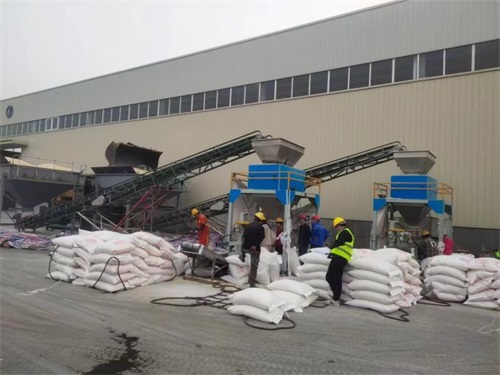

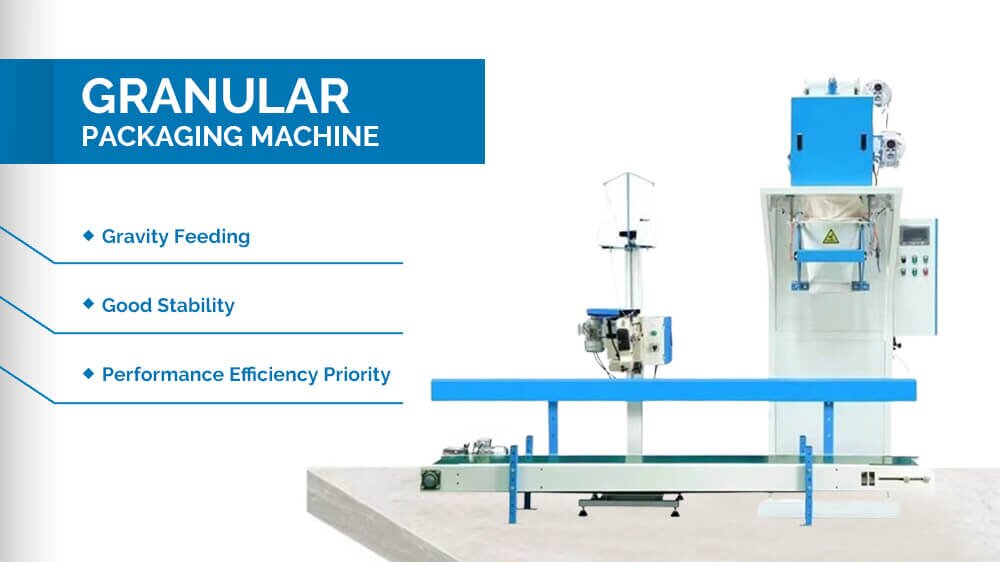

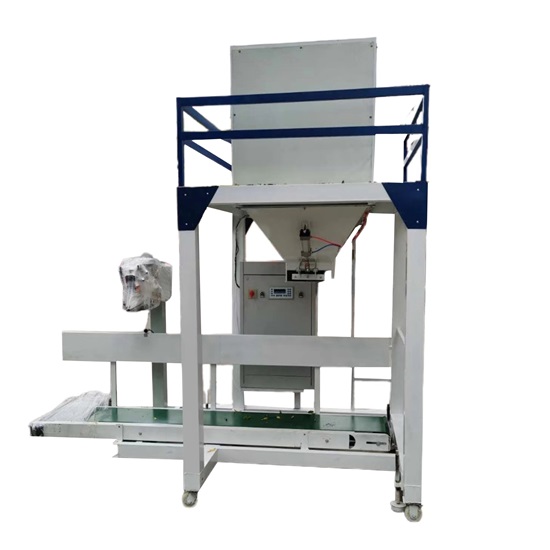

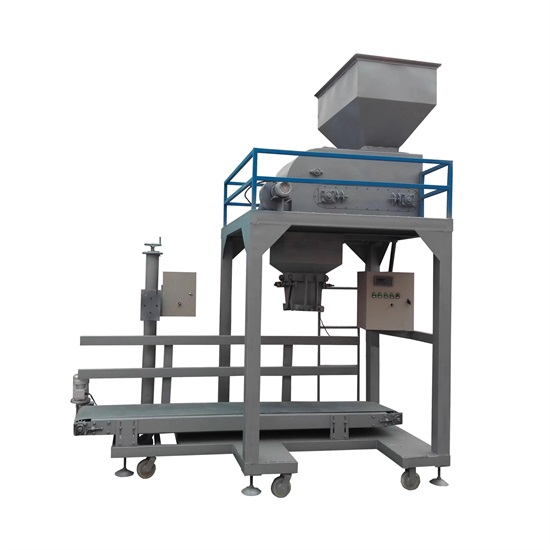

DCS-50 series automatic quantitative packaging machine is an automatic weighing and packaging machine.It it suitable for packing granular,flake and fluidity powder materials with high weighing accuracy and can be widely used in food(such as grain,beans,corn,rice,fertilizer,chemical and other products quantitative packaging.)The rated rang of packing weight is 5kg-80kg.The feeding, weighing, and discharging processes of the equipment are all automatically controlled by an intelligent electrical control system.

All our packaging machine accessories use famous brands, such as AirTAC for pneumatic components, WEINVIEW / Delta for HMI (color touch screen panels), Schneider / CHNT for electrical components, Load cells, we install 3 KELI load cells (maximum weight 200kg / pc , IP67) or Mettler Toledo as required. Our bagging machine is designed to operate stably for over 10 years.

Working principle

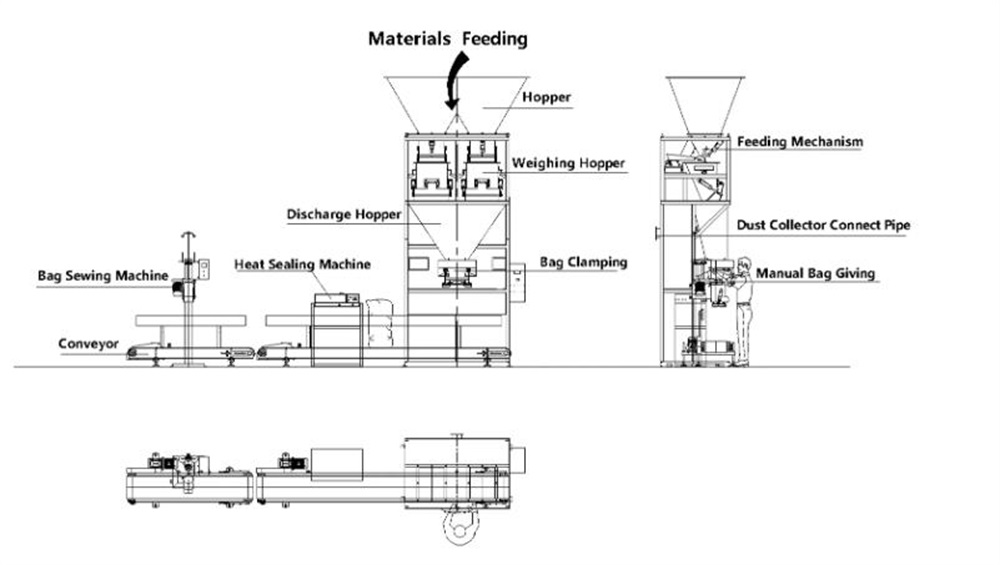

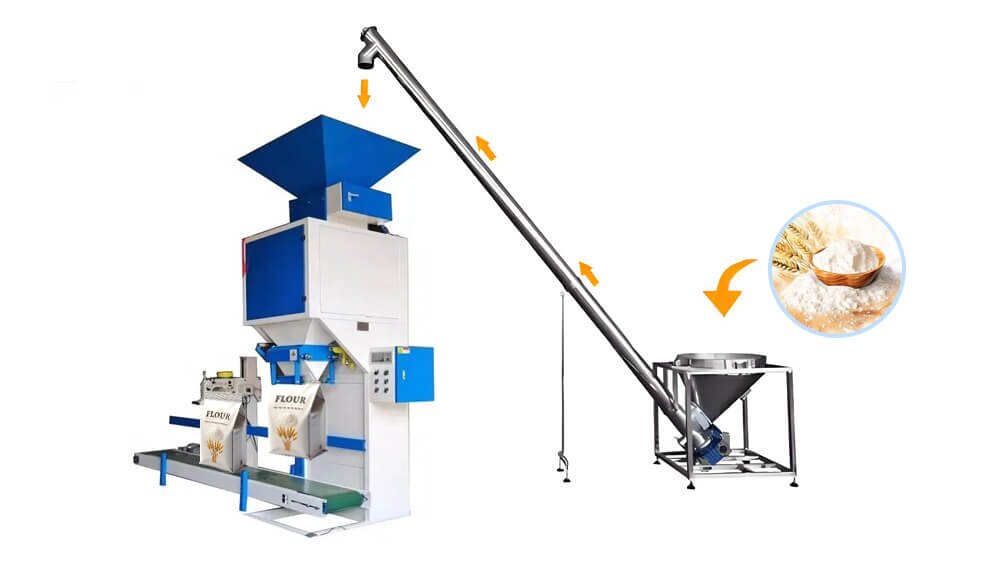

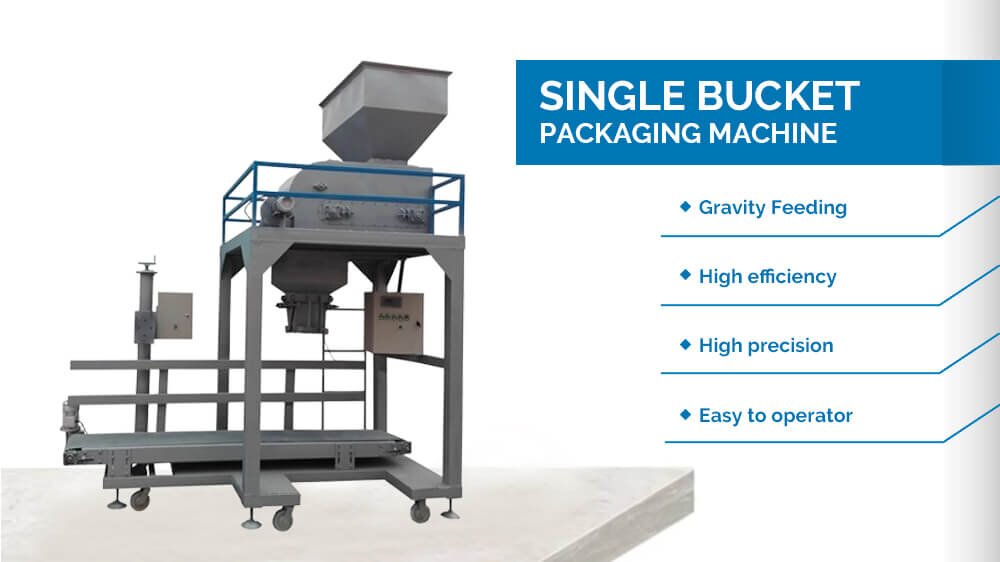

The quantitative filling and packaging scale machine is mainly composed of four parts:automatic weighing,sewing conveyor,bag sealing equipment and computer control.It has the characteristics of a reasonable structure,a beautiful appearance,easy operation,energy saving and power saving,simple installation and accurate weighing. It has reached the international advanced standards and acquired the CE certificate.

Technical Parameter

Application	Powder or ultra-fine powder material
Accuracy	+0.2%
Display Resolution	5g,10g
Weight Range	20-50kg
Packing Speed	300-360bags/hour
Dimension	85012503285(mm)/85016783443(mm)
Power	AC220V/380V 50HZ
Air source	0.5-0.7Mpa
Temperature Range	-10-40°
Relative humidity	≤90%RH(Non-condensing)

Detailed Photos

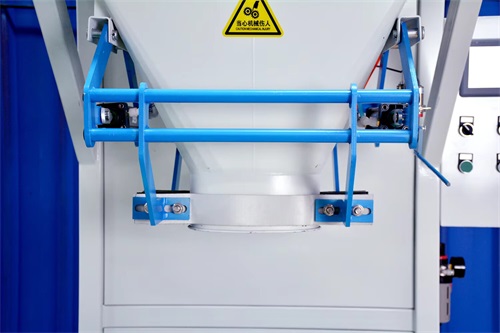

Discharge port:

A new type of bag clamping device has been designed, offering increased flexibility and a tighter grip,meeting the requirements of manual bag clamping.

It is Made of stainless steel 304.

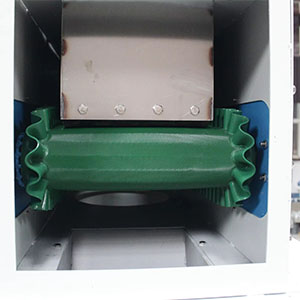

Belt:

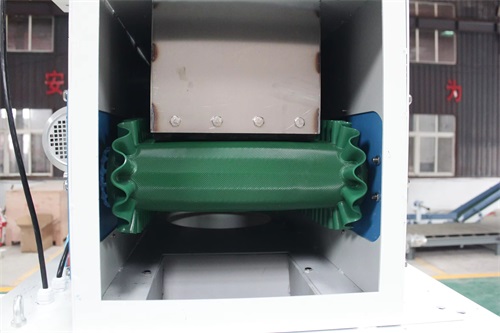

Choose different belts based on the materials’ varying moisture content to prevent high-moisture materials from sticking, and ensure the fragile and irregularly -shaped materials remain intact.

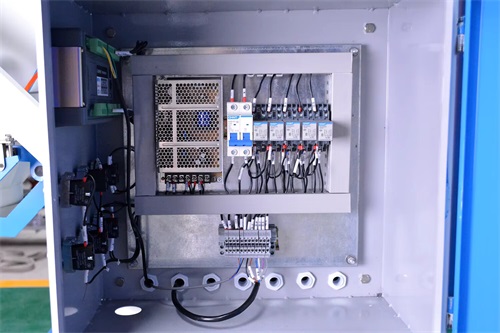

Electrical/Pneumatic ：

Well-know brand control cabinet,a longer service life for the customer.

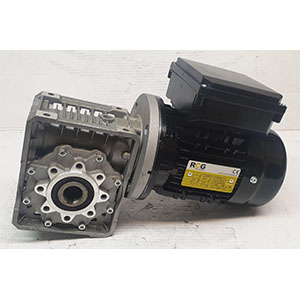

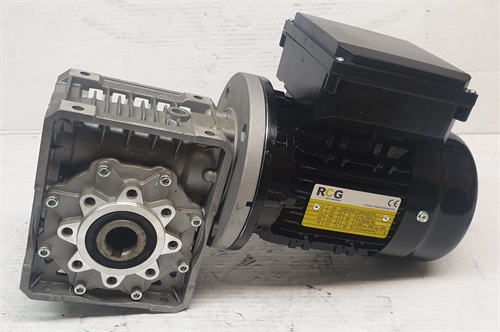

Motor ：

The motor uses a brass core,which is durable, and its running speed is synchronized with the sewing machine.It is customized and has adjustable speed.

Packaging sample display

Usage and Maintenance Tip

When the equipment stops working at the end of each shift or for other reasons, it should be shut down completely.All the remaining materials in the machine should be emptied,and the power and gas sources should also be turned off.
Before each shift, add 10# Lubricating oil to the oil mist lubricator according to regulations and empty the water filter’s sewage.
After each shift, all parts of the machine should be cleaned,and compress air should be used to purge them.Do not use water to wash the machine, especially the electronic scale and sensors.
When the equipment is not in use for a long time, all parts of the machine should be thoroughly cleaned.The exposed parts of carbon steel should be coated with rust-resistant oil.the active parts should be properly lubricated, and the moving parts should be secured fastened.Additionally,a plastic film should be used to protect the equipment.
If a fault occurs in the electrical control system while the equipment is in use,immediate power shutdown is required.Under such circumstances,users must not attempt to repair it themselves,Instead,they should notify our company so that we can arrange for the necessary repairs.
