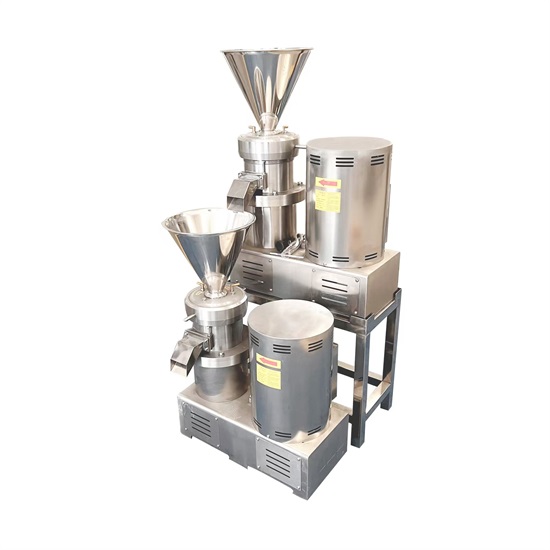

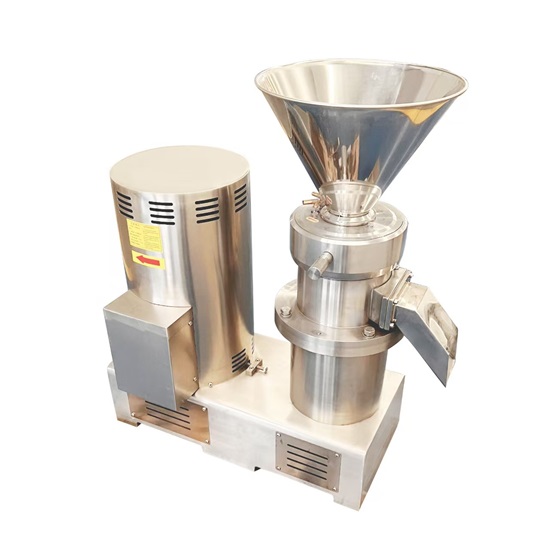

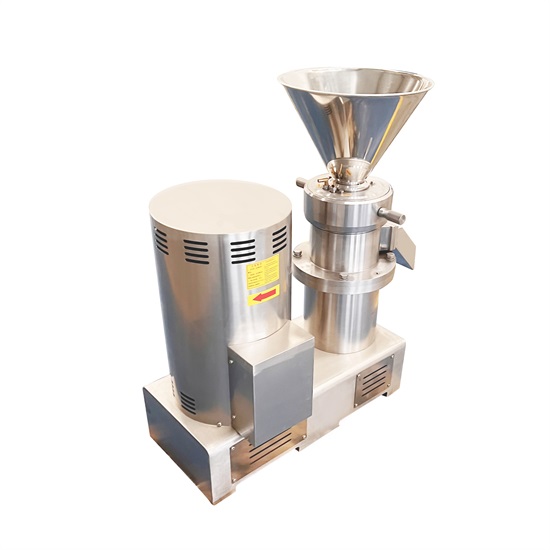

JM Series Colloid mill machine is a new model designed for fine grinding and crushing of fluid and semi-fluid materials. It is widely used in ultra-fine grinding in food,medicine,daily chemical,cosmetics and other industries.such as peanut butter,jam,chili sauce,juice,soymilk,dairy products,and beverages.
At Tianzhong Machinery, our colloid mill machine is created from stainless steel,offering superior corrosion and wear resistance.This unique design ensures that the processed materials remain pollution-free and hygiene.
Working principle
The colloid mill is driven by the relative motion of rotors and stators under the power of electric motor.The rotor rates at a high speed,while the stator remains stationary.The processed material is subjected to strong shearing and friction force,and under the action of high-frequency vibration and high-speed vortex,which effectively crushed,emulsified,homogenized and mixed,so as to obtain the required fine grinding fineness.
The high-speed shearing force of the stator and rotor at 3000rpm,can effectively ensure the quality and effect of the slurry.
Technical parameter
Model
JM-80
JM-110
JM-130
JM-160
JM-180
JM-210
JM-240
JM-300
Capacity(kg/h)
60-80
100-200
300-500
500-600
700-600
1000-1200
1200-1500
3000-4000
Power(kw)
4
7.5
11
15
18.5
30
45
75
Voltage(V)
380
380
380
380
380
380
380
380
Weight(kg)
150
175
285
300
375
700
920
1300
Dimension(mm)
600x410x930
700x430x1000
990x440x1000
1000x460x1050
1000x490x1100
1260x600x1230
1330x630x1280
1440x680x1420
Hopper Capacity
8L
8L
14L
14L
14L
24L
24L
32L
Rotor Diameter
80mm
110mm
130mm
160mm
160mm
210mm
240mm
300mm
Rotor Speed
2890r/min
2900r/min
2930r/min
2930r/min
2930r/min
2950r/min
2970r/min
2970r/min
Detailed Photos

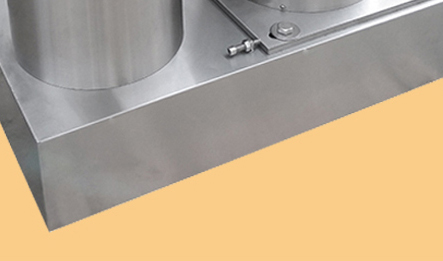

Thickened base
The thickened stainless steel base makes the machine more stable in operation.

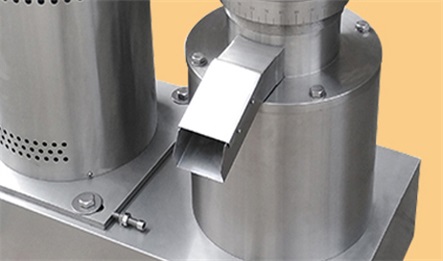

Outlet
Adopt square discharge port, large caliber, fast discharge.

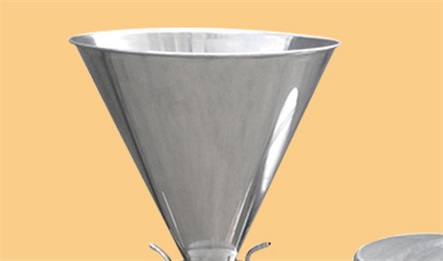

Hopper
The size of the funnel can be customized according to customer needs.

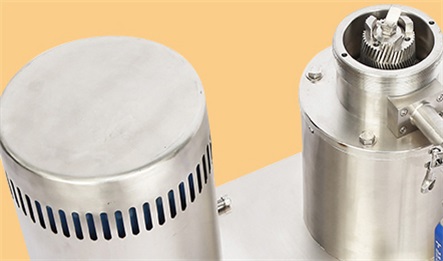

Motor cover
Used to protect the motor, dense cooling holes make the machine run longer.
Special Features
Particle size reduction: Colloid mills can reduce the size of particles in solids suspended in liquids or droplets in emulsions.
Very Easy operation: It has a simple structure and is easy to maintain and operate, making it suitable for materials with higher viscosity and large particles.
Grinding and shearing: Colloid mills can grind and shear products with ease, including high viscosity products.
Noise reduction:Colloid mills produce less noise.
Wear-resistant materials: The main components of the colloid mill are made of high-quality stainless steel, ensuring corrosion resistance and non-toxicity.
Cooling system: There is a cooling system to ensure the properties of the processed materials.
The gap between the stator and rotor can be precisely adjusted via a.
A variety of applications: Colloid mills can be used in the chemical,personal care, pharmaceutical, cosmetics, suspensions, and emulsion industries.
How does a colloid mill work?
A Colloid mill is a machine that used to reduce the particle size of a solid in suspension in a liquid,or to reduce the droplet size in emulsions.Colloid mills work on the rotor-stator principle:a rator turns at high speeds(2000-18000RPM),A high level of hydraulic shear stress is applied on the fluid which results in disrupting and breaking down the structure.Colloid mills are frequently used to increase the stability of suspensions and emulsions,but can also be used to reduce the particle size of solids in suspensions.Higher shear rates lead to smaller droplets.down to approximately which are more resistant to emulsion separation.

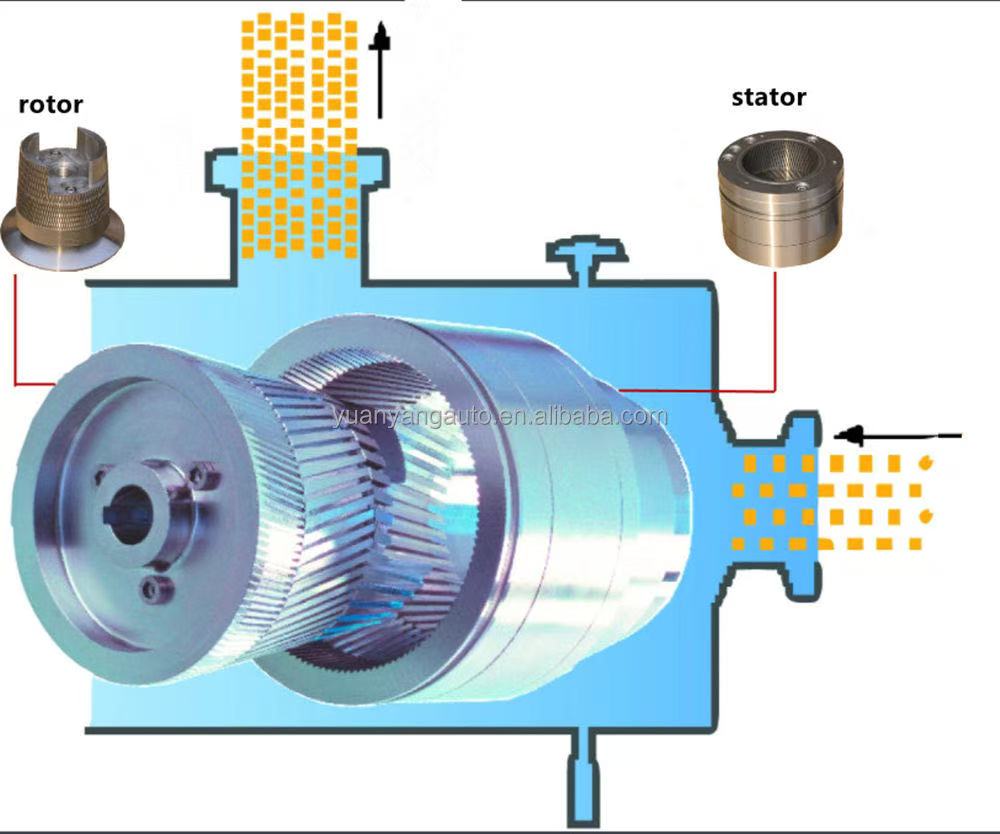

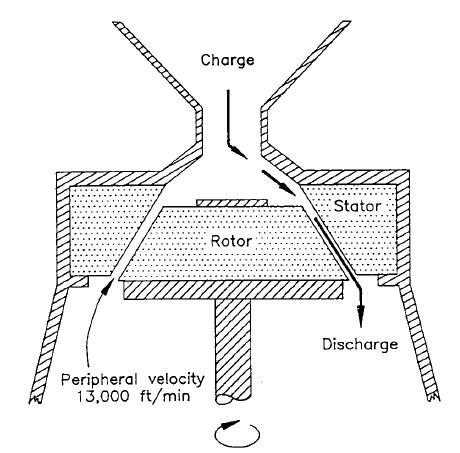

Schematic Colloid mill
Application
Colloid mill is mainly used for grinding a variety of materials.Below is common applications:
