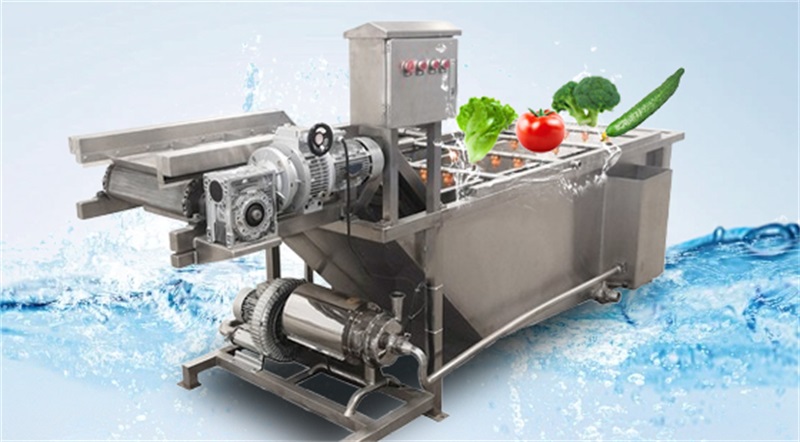

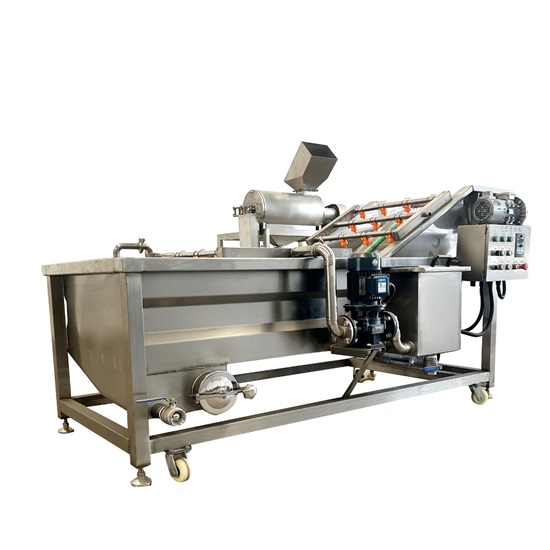

1.The bubble cleaning machine is fitted with a bubble detection system and high-pressure spray nozzle in its upper section,which effectively removes surface debris from the items being cleaned,making it a good alternative to manual cleaning.thereby it can save the labor costs and increase productivity.

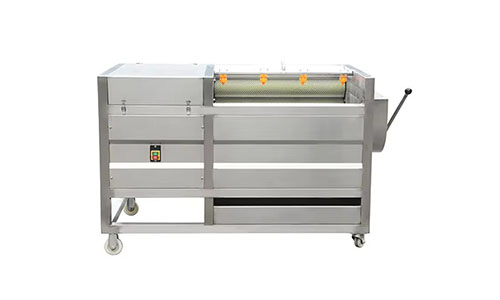

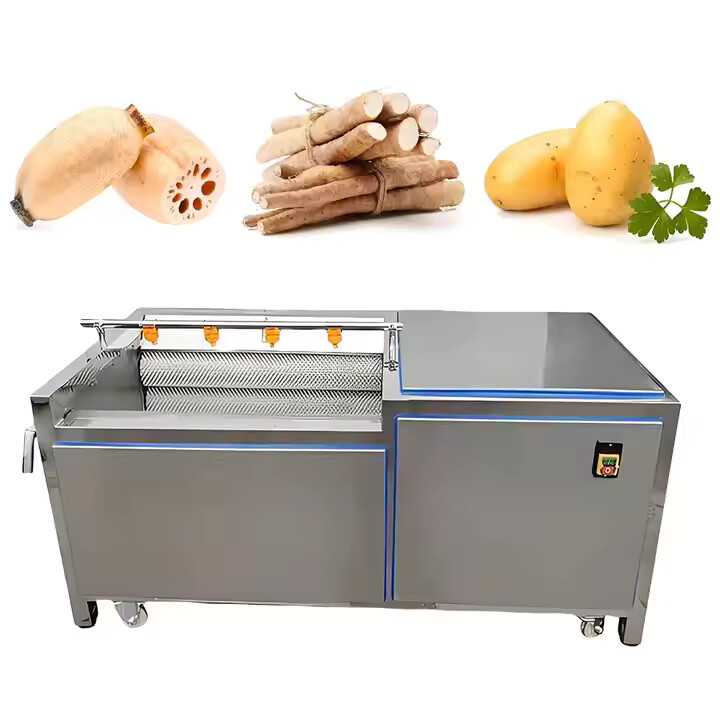

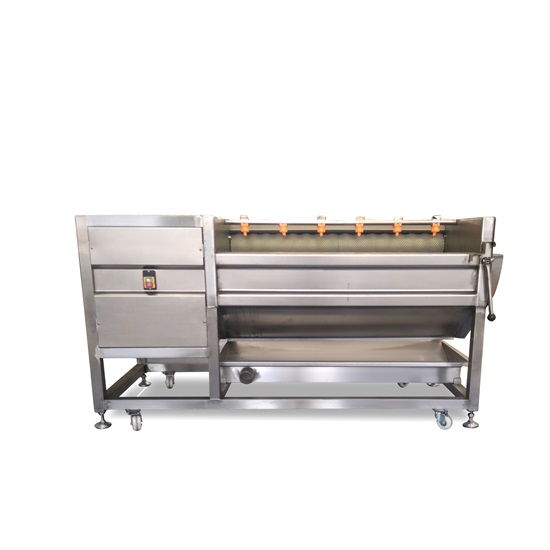

2.The brush cleaning machine is suitable for cleaning round fruits and vegetable.The material is rotated by an angle of 306 degrees around the revolving brush rollers for cleaning purposes. The rotating brush pushes the material forward, effectively cleaning dirt and dust on its surface. There are two types of brush cleaning machines: cylindrical and wave-shaped.

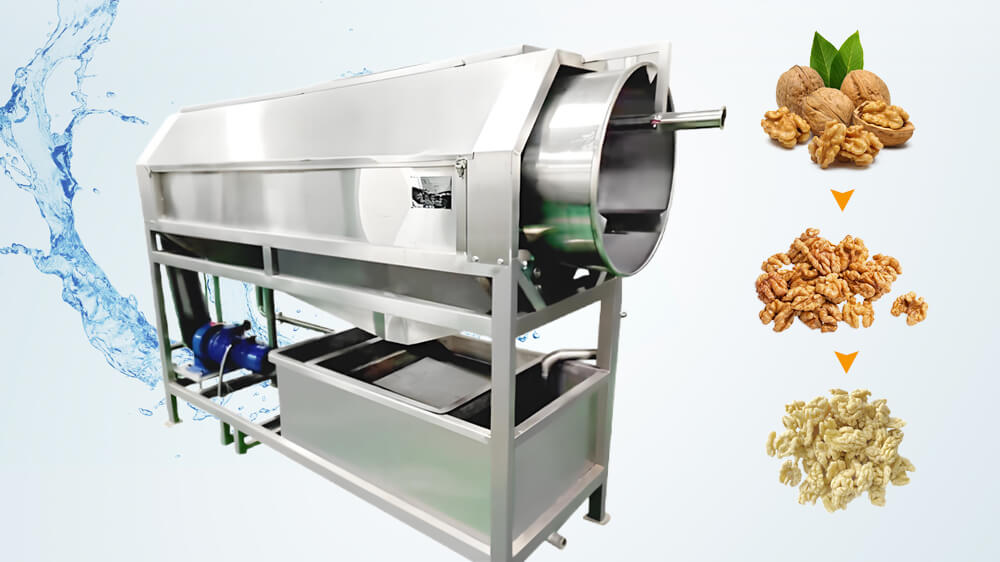

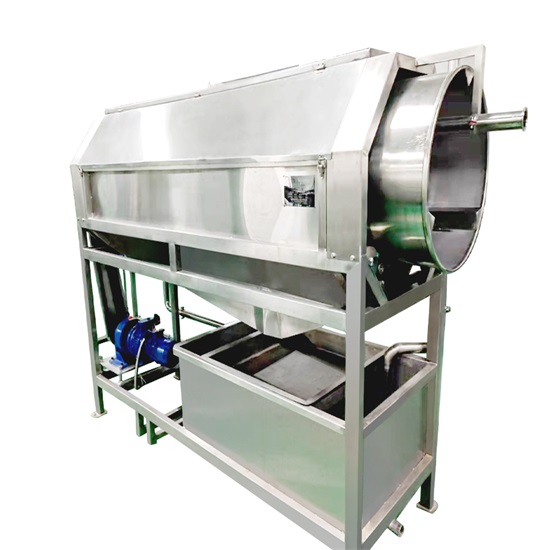

3.The drum washing machine is ideally suited for the cleansing and washing of fruits and vegetables. such as carrots,sweet potatoes, potatoes, apples, and pears.
The raw materials is uniformly distributed into the drum, where they are constantly turned over by the drum's rotation. The raw materials are rubbed against the drum brushes and among themselves,while the spray pipes deliver high-pressure washing.
The washing machine is a new type of fruit and vegetable cleaning equipment developed and produced by our company. It is made of food-grade 304 stainless steel, which meets the national food hygiene and safety standards, and can be customized according to customers’ actual production needs.
Excellent scientific researchers provide project solutions.
Professional technical certification standards guarantee.
product’s quality,Strict ISO9001 quality system ensures the stability and reliability of equipment.
Special Features
The feed screw provides continuous and uniform feeding.The fruits are destemmed first and then crushed.
The destemming shaft and the destemming rotary screen both possess stepless speed regulation capabilities. Additionally, the aperture of the rotary sieve can be customized according to the variety of grapes and the particle size of the pulp.
The crushing roller is made of non-toxic rubber, sanitary and easy to clean.
The whole machine is all made of high-quality stainless steel.
The aperture of the rotary sieve can be set depending on the grapefruit size.
The crushers generally remove approximately 85% of stems based on the specific conditions.
Technical parameter
Model
Power
Capacity
Weight
Dimensions(mm)
QPX3000
3.75kw
500kg/h
180kg
2000*1400*1300
QPX4000
4.1kw
800kg/h
400kg
4000*1400*1300
QPX5000
5.1kw
1500kg/h
600kg
5000*1400*1300
QPX6000
5.5kw
2000kg/h
850kg
6000*1400*1300
Model
Power
Capacity
Weight
Dimensions(mm)
MSX1000
1.1kw
1000kg/h
260kg
1600*850*800
MSX1500
2.2kw
1500kg/h
350kg
2100*850*800
MSX2000
3kw
2000kg/h
420kg
2600*850*800
Model
Power
Capacity
Weight
Dimensions(mm)
GTX-5
2.2kw
5t/h
1550kg
3000*1000*1800
GTX-5
2.2kw
5t/h
1550kg
3000*1000*1800
Detailed Photos
Stainless steel: Stainless steel body,the whole machine is made of stainless steel material,easy to clean, strong and durable,good rust prevention performance.

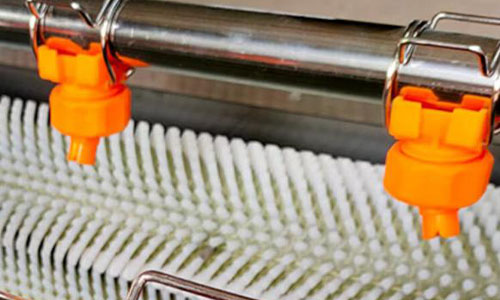

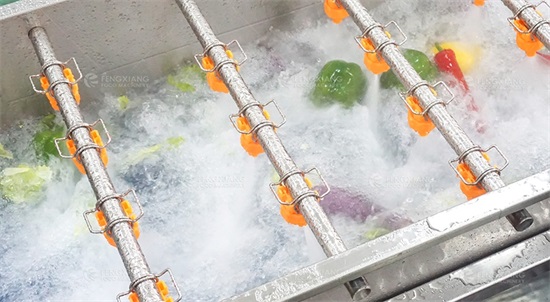

Nozzle: High temperature resistant nozzle,spray water more evenly,in order to clean the material.

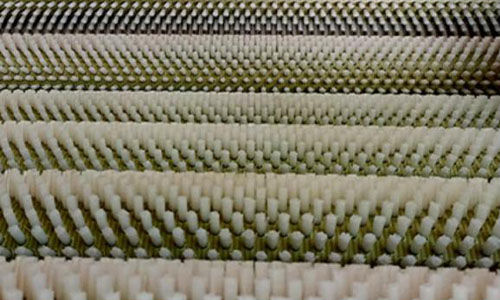

Hair brush: Strong corrosion resistance, tensile strength, and brush hardness can be selected. The material can be cleaned through the rotation of rollers, removing dirt and impurities.

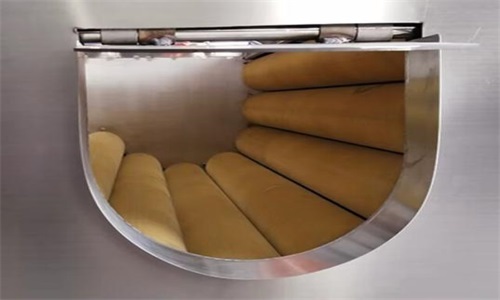

Outlet: U-shape discharge design, prevent material wear,easy to open, automatic discharge, simple and efficient.

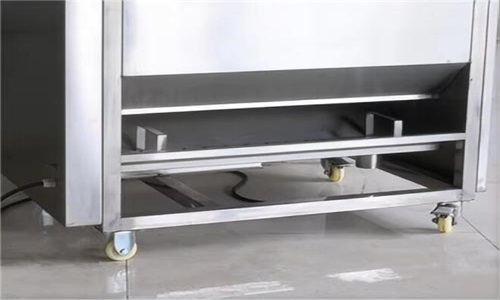

Universalwheel: Nylon360 degree rotating wheel,movable,saving time and effort.
Application

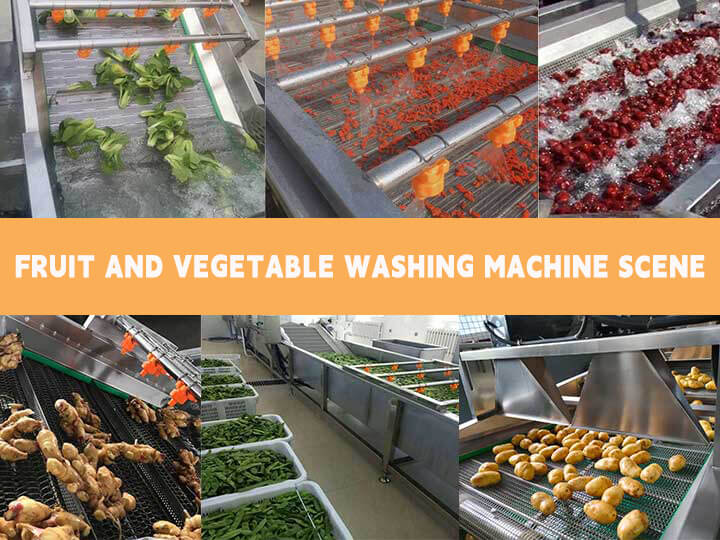

It can be applied to the cleaning, soaking,sterilization,and color preservation of granular,leafy,and rhizome products such as leafy vegetables,edible fungi,fruits,aquatic products,and Chinese herbal medicines.
