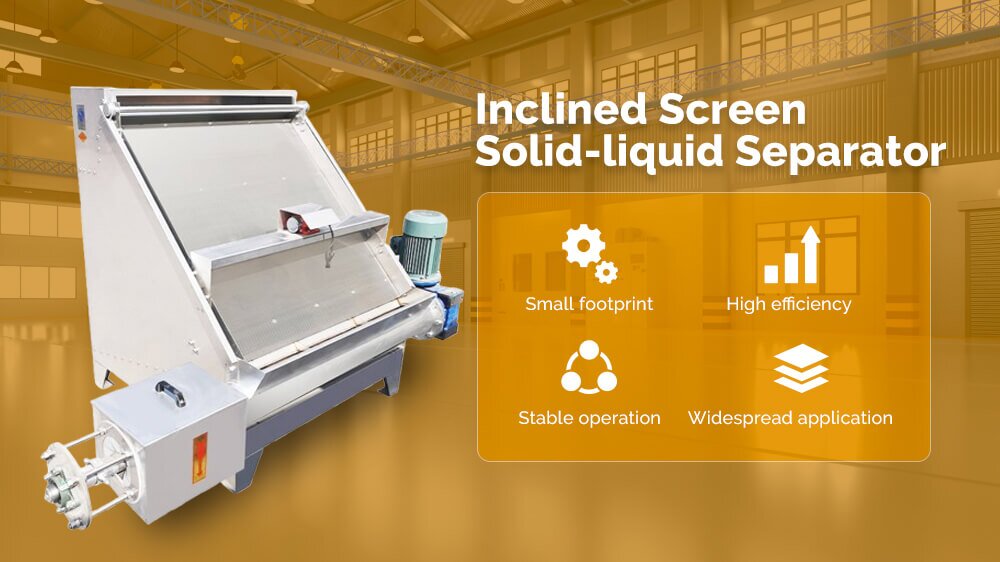

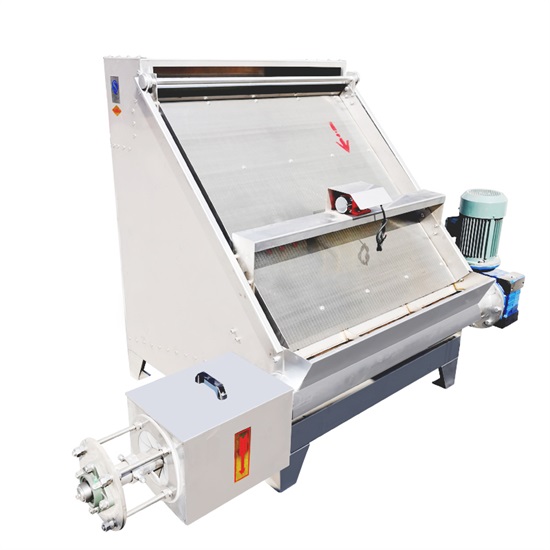

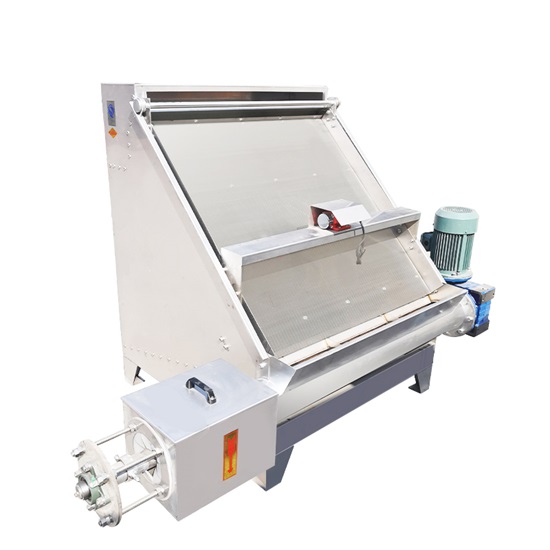

Inclined screen type solid-liquid separator is ideal for the solid-liquid separation of livestock and poultry manure, as well as for the dewatering of manure and biogas slurry.It can separator pig manure,duck manure,cow manure,chicken manure and other animal manures into liquid organic fertilizer and solid organic fertilizer.
Tianzhong machienry is focus on providing an innovative design solution for managing dung waste by separating its solid and liquid components.
Technical Parameter
Model
TZ180
TZ200
TZ280
TZ1200
Voltage
380V
380V
380V
380V
Power(kw)
4+3kw
4+3kw
5.5+3kw
3+3KW
External dimensions(mm)
2000*600*1300
2200*610*1350
2400*800*1300
2600*1200*1600
Weight(kg)
340kg
510kg
680kg
480kg
Capacity
5-6m³/h
8-10m³/h
12-15m³/h
35-40m³/h
Filter inner diameter(mm)
180mm
200mm
280mm
260mm
Inlet diameter(mm)
76mm
76mm
76mm
76mm
Diameter of overflow port(mm)
76mm
76mm
76mm
760mm
Drain pipe diameter(mm)
110mm
110mm
110mm
160mm

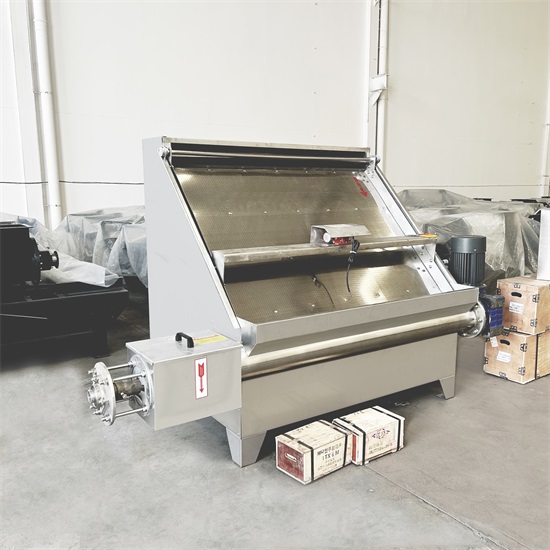

Detailed Photos

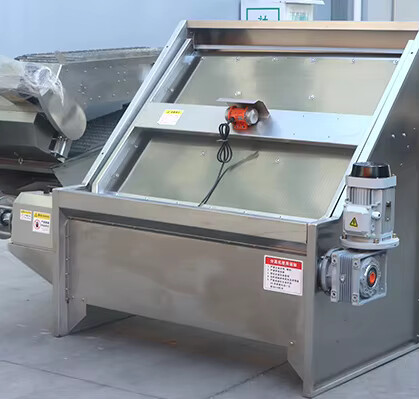

Large water processing capacity
Easy cleaning,single machine processes large volumes of water.

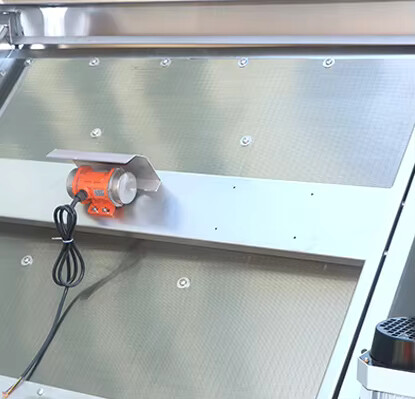

304 Stainless Steel screen mesh
304 stainless steel screen mesh and spiral dragon,featuring a stronger blade and corrosion resistant,greatly increasing the service life of the machine.

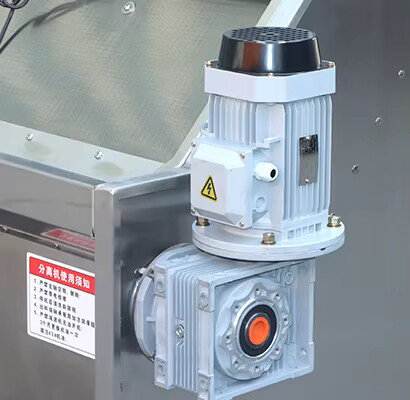

Pure copper motor
A pure copper motor is used to provide the motive power,The motor has high speed and high power.

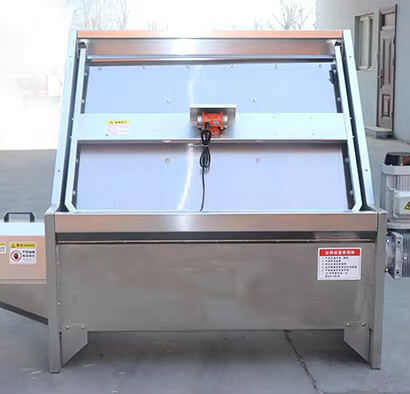

Control system
It has adjustability and can adjust the moisture content of the discharge and the processing capacity of the separator through a pressure regulating device.

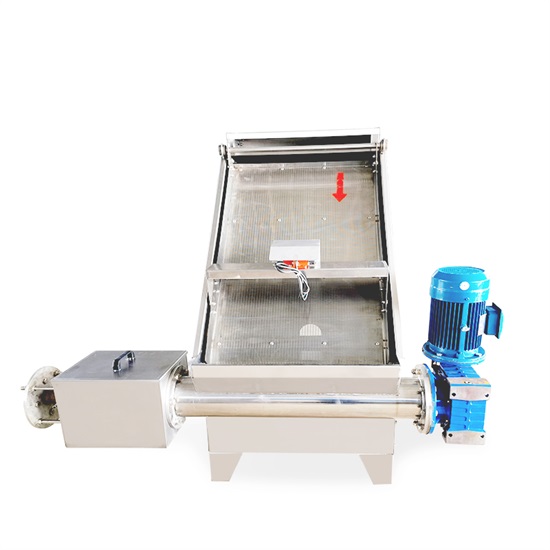

Working principle
The principle of solid-liquid separator is spiral extrusion solid-liquid separation technology.The main components are:body,screen,extrusion and stranding,reduction motor,unloading device and other components.
The principle of the solid-liquid separator is based on sprial extrusion solid-liquid separation technology.The main components include the body,screen, extrusion and strading unit,reduction motor, and unloading device,and other components.
Advantage
Inclined screen type cow dung separator has small volume,low rotation,simple operation,high efficiency and no need to add any coagulant.
The thick stainless steel spiral shaft features a wear-resistant treatment,ensuring a long service life.The pitch parameter is scientific and reasonable.
Slop screen solid-liquid separator is particularly suitable for materials with a high water content of over 90% and low solid content.(such as pig manure, cow dung,duck manure etc and press separation of slaughter house sewage. )
The electronic control system incorporates overload protection,leakage protection and low voltage protection.
The stainless steel filter mesh is manufactured by strip-shaped high-precision molding process,which has the characteristics of good filtration, anti-clogging and long service life.
Pig manure, cow dung, duck manure,etc and press separation of slaughter house sewage.
Bio-pharmaceuticals
Extrusion separation of traditional Chinese. Medicine slag after leaching of particles, powdersand various plant-based traditional Chinese medicine residues etc.
What is the advantage of using an animal manure separator in Agricultural?
You can use an animal manure separator in agriculture for various purpose.
Composted manure: Composted manure is a valuable source of nutrients and organic matter that can be used as a soil amendment in agriculture.
Dewatering: Manure dewatering machine can remove excess moisture from animal manure, making it easier to handle, store, and transport. This dewatering process can also reduce the volume of manure, which is beneficial for environmental management and reduces the risk of nutrient runoff.
Pathogen reduction: Manure separation machines can kill pathogens and reduce the spread of diseases that may be present in animal manure.
Odor control: The separation process can also help control odors associated with manure, which is important for animal welfare and the surrounding environment.
Energy production: In some cases, the organic matter from manure can be used to produce biogas or electricity through anaerobic digestion, which is a renewable energy source.
Soil amendment: Solid Manure Separation can be used as a soil amendment to improve soil fertility,enhances soil structure, increase organic matter content, and provide slow-release nutrients.
Using an animal manure separation machine in agriculture can lead to more efficient and sustainable management of manure, which is an important aspect of modern farming practices.Suitable for apply it on your pig farm,cattle farm,chicken farm or some other animal farms.with this machine,you can turn your animal waste into available organic fertilizers.
As a leading band of manure separator，Tianzhong ,Machinery continuously provide customer with cost-effective solid-liquid separation overall solutions.Welcome to consult at any time!
