Description

Belt conveyor are ideal for handling materials with large and varying particle sizes and are capable of handling a wide range of bulk materials from very fine to large lump sizes.Belt conveyors can be configured to fit almost any application.They can transport material horizontally,on slopes,or a combination of both.They require less power to operate than other types of conveyors.

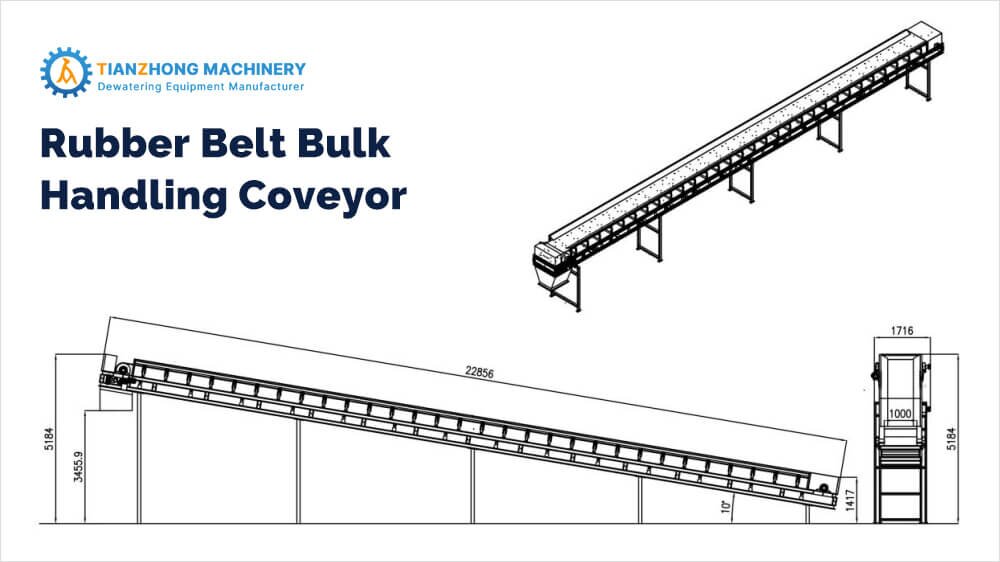

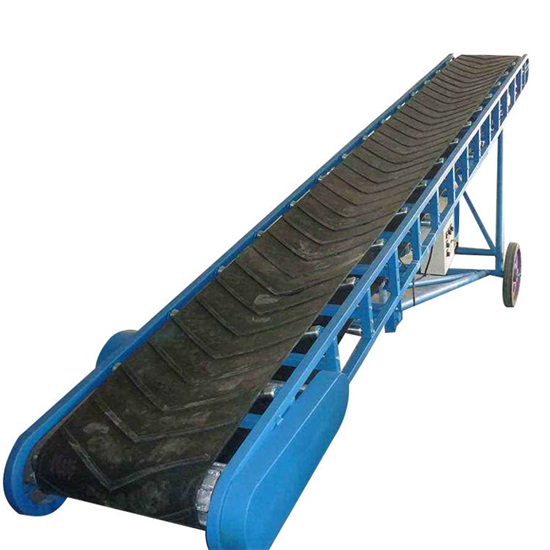

Rubber Belt Bulk Handling Conveyor

HOW TO DECIDE BELT CONVEYOR INCLINATION

A belt conveyor running at any angle,including vertically,but it’s doubtful if it’ll move stuff.

In practice,conveyor belt with very  high upward inclination will struggle because the material will roll back down the bottom.In general ,the steeper the angle, the less material that can be conveyed up.

You go past the maximum limit of inclination

• The maximum angle for a flat belt is usually reach to be 20°.Beyond this, material slippage become a concern.
• If you need to transport materials at very high angles,a 15mm chevron pattern belt  can handle steeper inclines up to about 32°.
• If you need to go any higher, a troughed and flighted belt with standard excavated material can reach as high as 45°
• Troughed and Flighted Belt Conveyors:Designed for even steeper requirements, these can go up to 45°for ordinary excavated material.

Technical Parameter

Properties

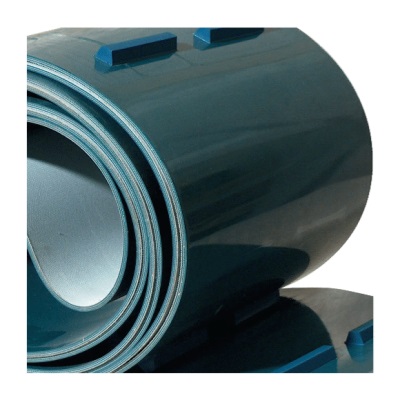

1. Abrasion resistant belts- to reduce wear and increase durability.
2. Solid structural frames and supports- to ensure the rigidity of the system.
3. Highly durable drive units- to operate in adverse conditions.

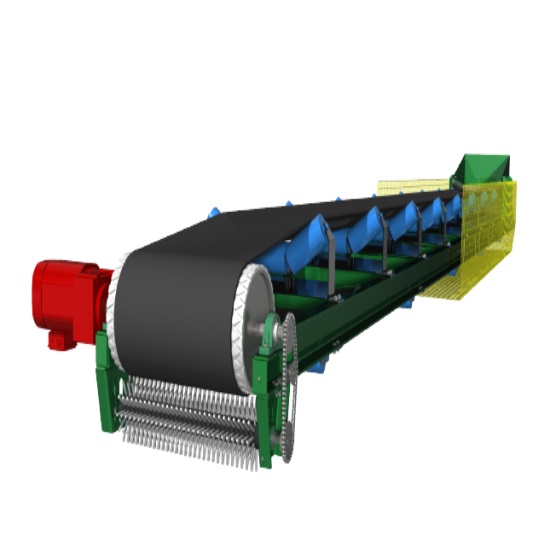

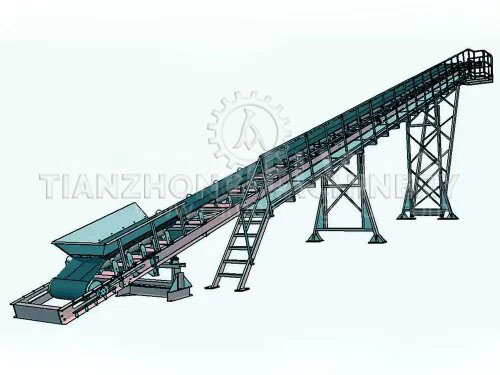

Structure diagram

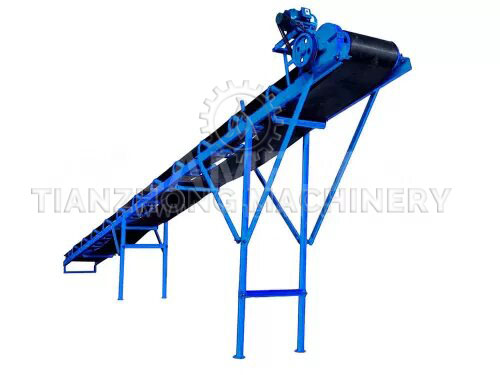

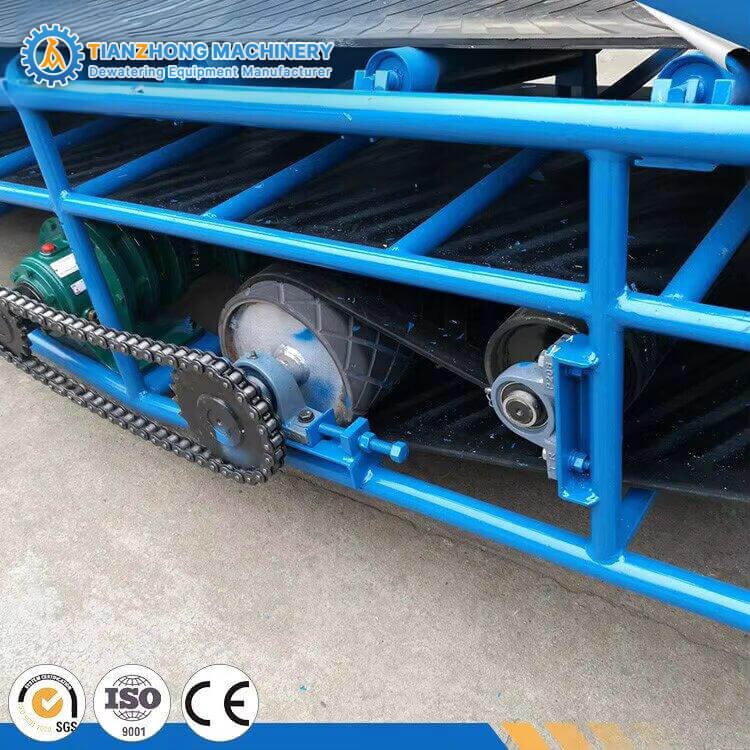

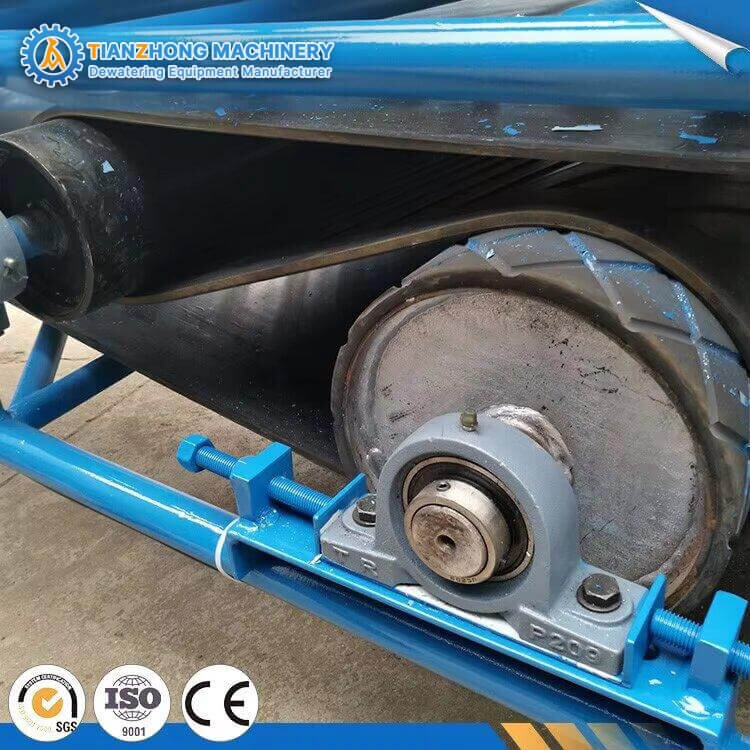

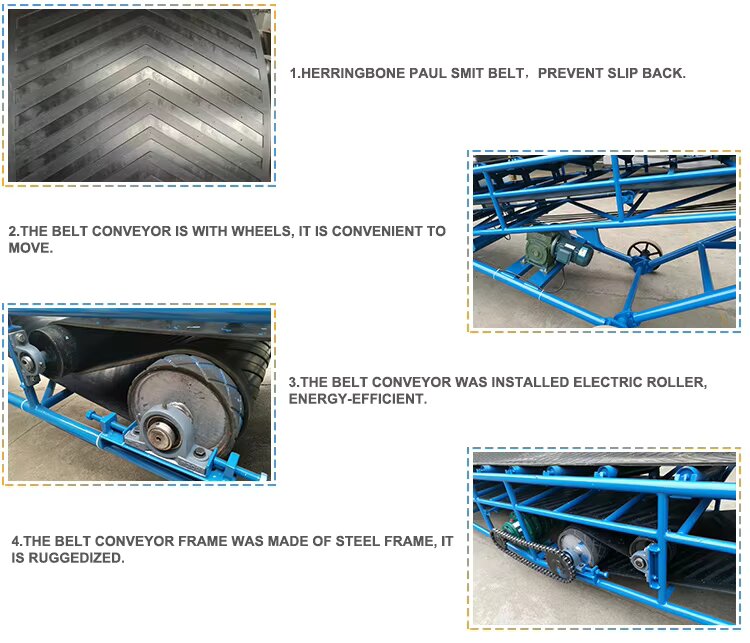

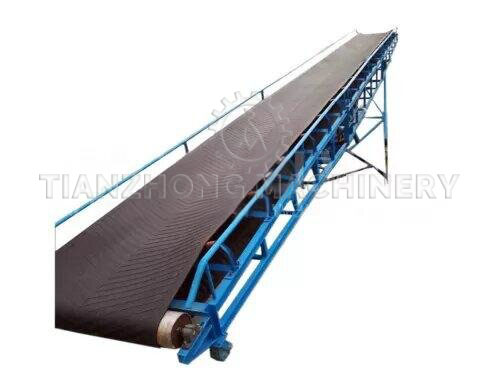

Detailed photos

Real case

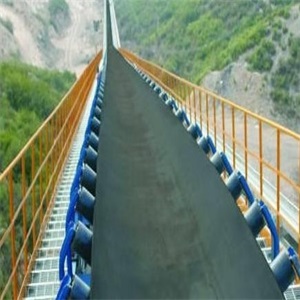

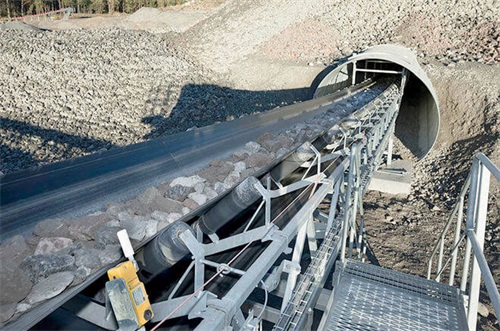

Long-distance crossing conveyor

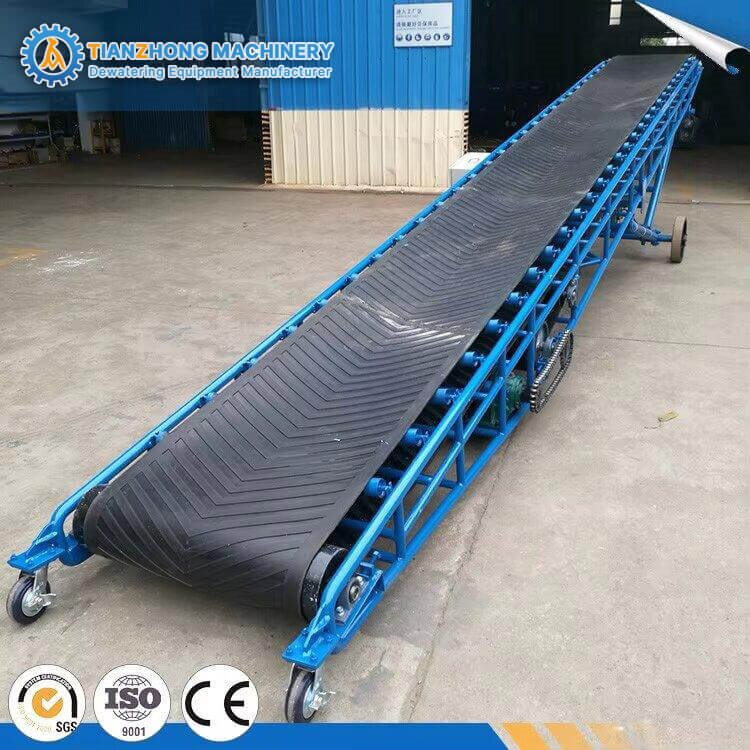

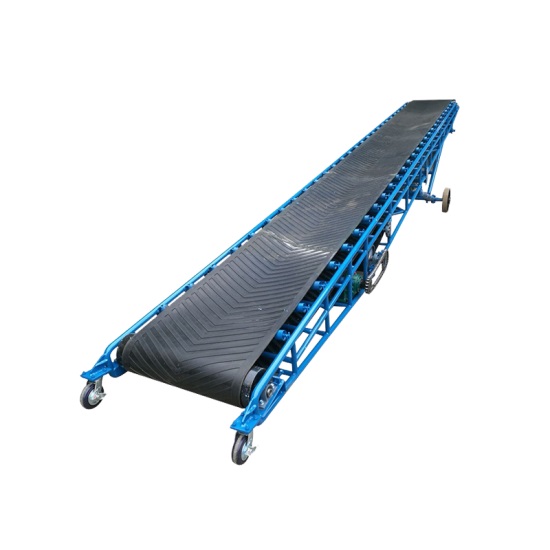

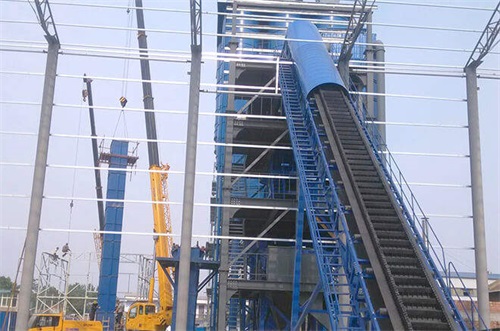

Corrugated steep angle conveyor belt

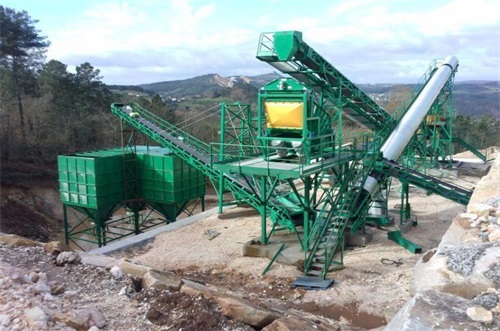

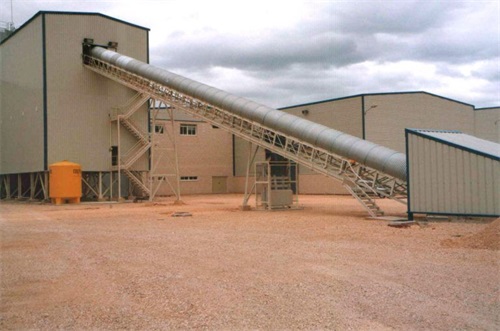

Industrial mineral processing plant

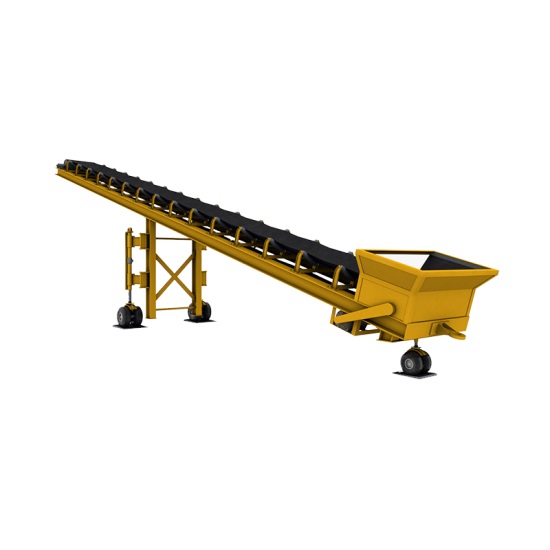

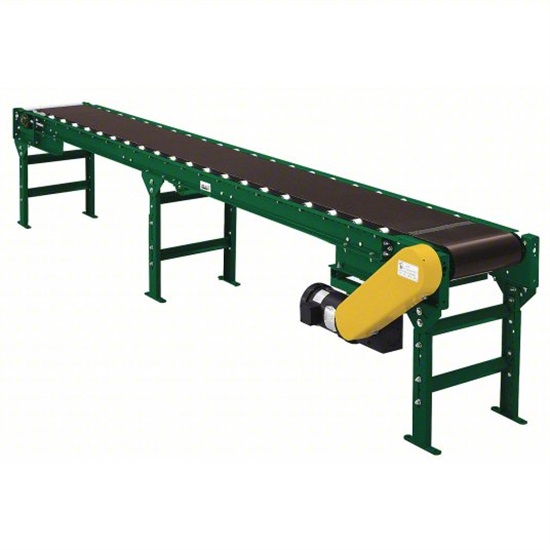

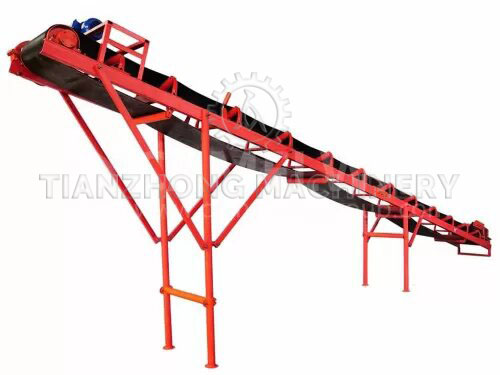

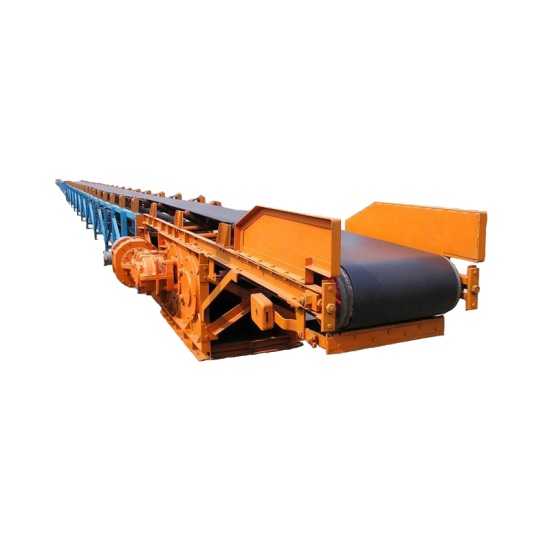

Belt conveyor for bulk material

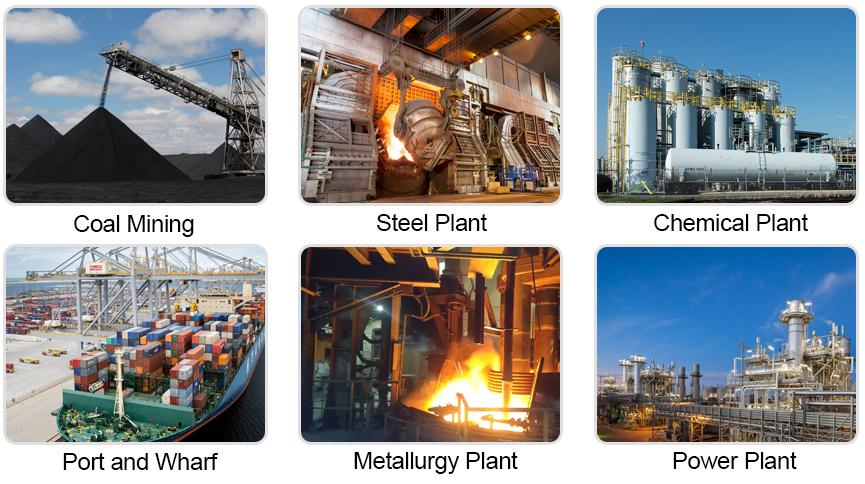

Application

Belt Conveyor is very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, such as snack foods, frozen foods, vegetales, fruits, confectionary. Chemicals and other granules.
