Screw conveyor is the main unite for mechanical conveying operations industry and agriculture.it uses a motor to drive screw rotation,moving materials and achieving the conveying purpose.
Screw conveyor are a commonly selected equipment for thousands of industrial and manufacturing applications, which require an efficient, cost-effective way to move a variety of bulk materials from one process to another. However,a screw conveyor is not a one-size-fits-all solution，if misapplied,this equipment will experience breakdowns that result in lost revenues from production downtime.

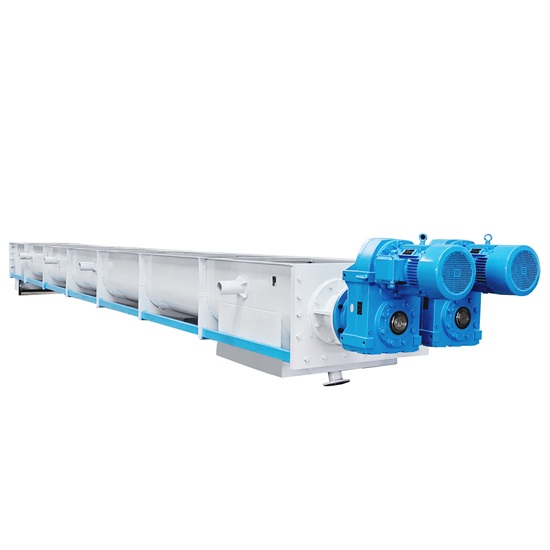

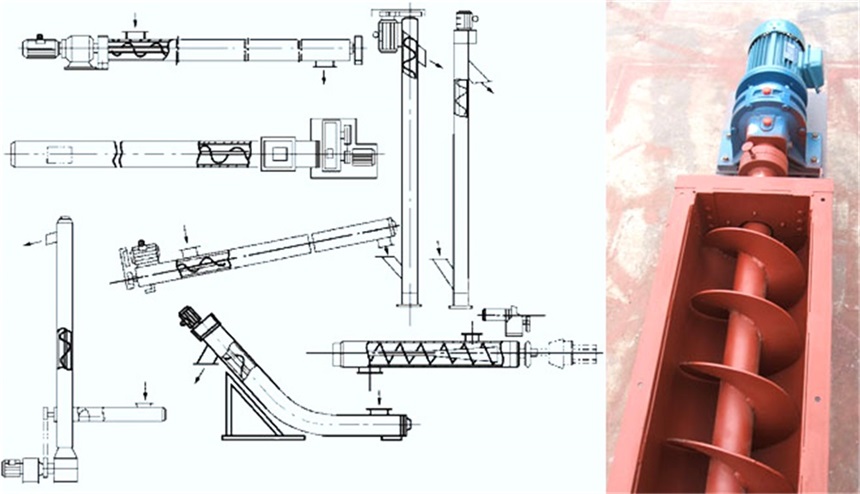

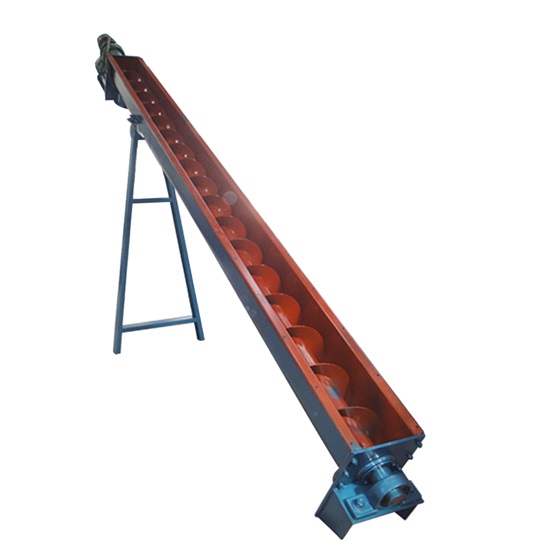

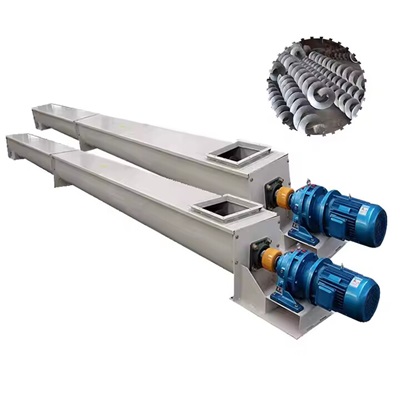

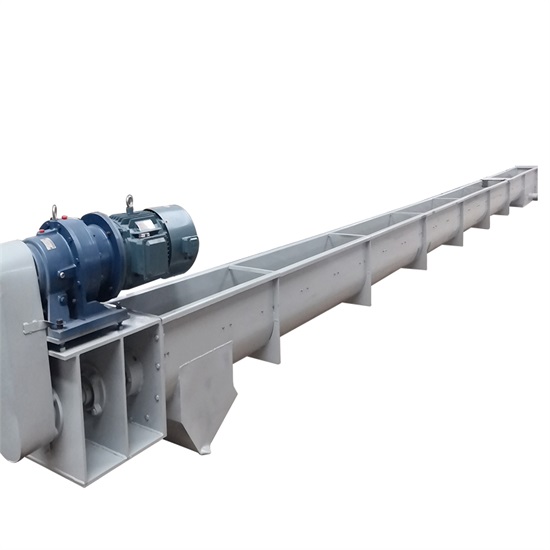

U-TYPE SCREW CONVEYOR

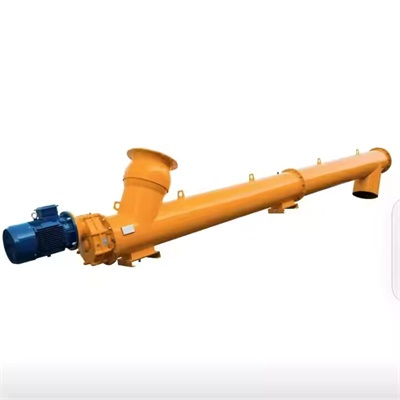

Tube SCREW CONVEYOR

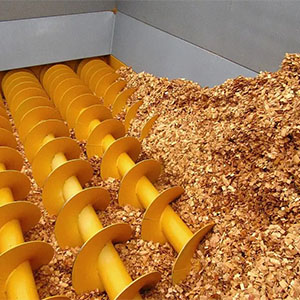

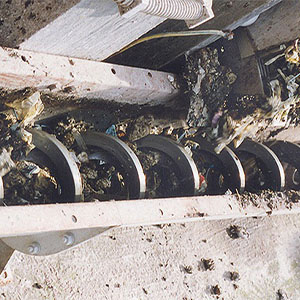

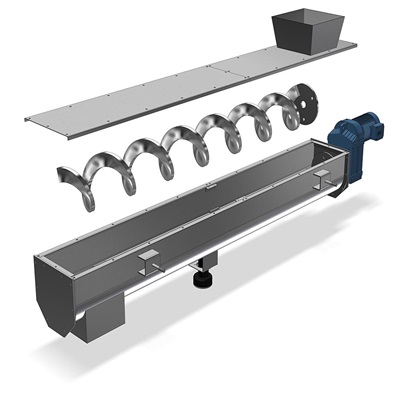

SHAFTLESS SCREW CONVEYOR

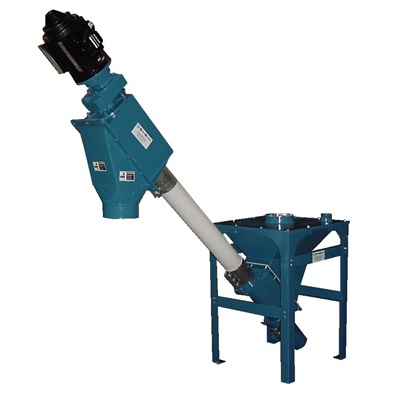

FLEXIBLE SCREW CONVEYOR

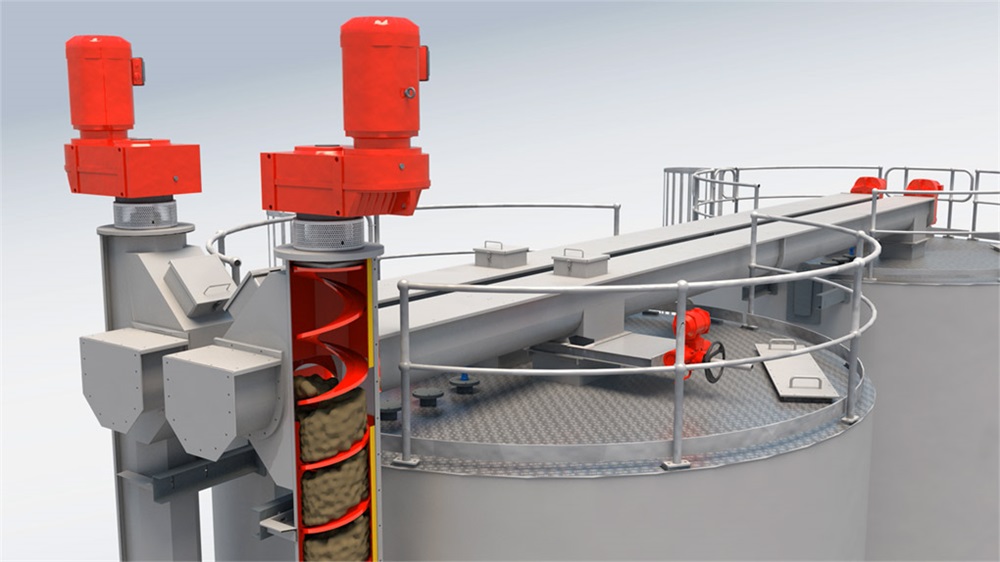

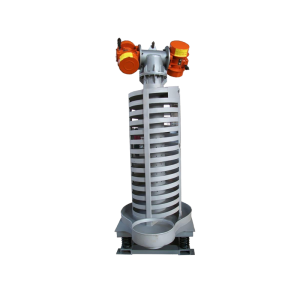

VERTICAL SCREW CONVEYOR

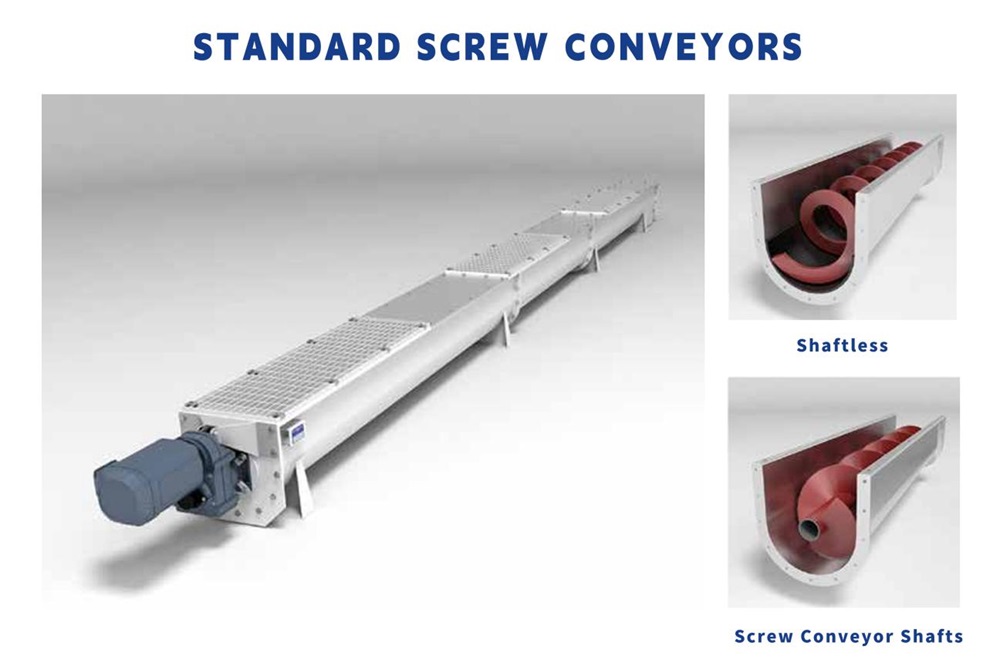

We have developed STANDARD Screw Conveyor which can easily be assembled to different lengths,for the most common dimensions.（Shafts are manufactured from cold-rolled C-1045 carbon steel as well as 304 and 316 stainless steel,other material are available upon request）

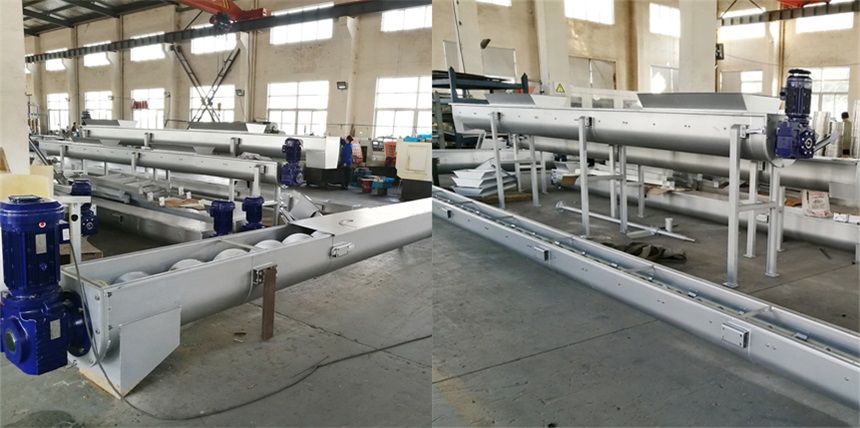

Using Tips
Screw conveyor is suitable for working environment temperature which is between 20℃ to 50 ℃，including the horizontal screw conveyor, temperature of material conveyor should be lower than 200℃；Conveying distance less than 400 meters,maximum not exceeding 70 meter;Vertical screw conveyor,it’s temperature should not be more 80℃，the vertical light is not more than 8 meters.
Selection Model:LS Type screw conveyor can according to different customers production situation and production purpose to customize.production material could be all carbon steel, stone stainless steel,or all stainless steel,with food hygiene requirements of enterprise recommend stainless steel material, no request can use carbon steel.

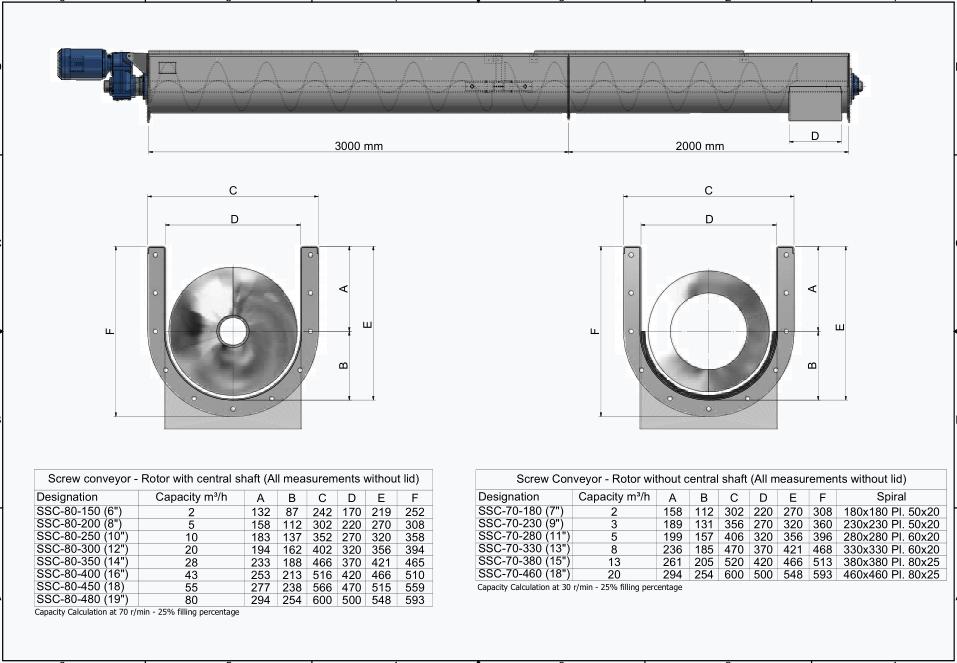

Technical Parameter
LS
100
160
200
250
315
400
500
630
800
1000
1200
GX
200
250
300
400
500
Diameter(mm)
100
160
200
250
315
400
500
630
800
1000
1250
Screw Pitch(mm)
100
160
200
250
315
355
400
450
500
560
630
Speed(r/min)
140
120
90
90
75
75
60
60
45
35
30
CapacityQφ=0.33（m³/h）
2.2
7.6
11
22
36.4
66.1
13.1
160
223
304
458
Power Pd1=10m（kw）
1.1
1.5
2.2
2.4
3.2
5.1
4.1
6.6
12
16
24.4
PowerPd1=30m（kw）
1.6
2.8
3.2
5.3
8.4
11
15.3
25.9
36
48
73.3
Speed(r/min)
120
90
75
75
60
60
45
45
35
30
20
CapacityQφ=0.33（m³/h）
1.9
5.7
18
18
29.1
52.9
69.8
125
174
261
305
Power Pd1=10m（kw）
1.0
1.3
2.1
2.1
2.9
4.1
4.7
6.8
9.4
14.1
16.5
Power Pd1=30m（kw）
1.5
2.3
4.5
4.5
7
8.9
11.6
20.4
28.3
42.2
49.5
Speed(r/min)
90
75
60
60
45
45
35
35
30
20
16
CapacityQφ=0.33（m³/h）
1.4
4.8
15
15
21.8
39.6
54.3
97
149
174
244
Power Pd1=10m（kw）
0.9
1.2
1.9
1.9
2.5
3.4
4.3
5.4
8.1
9.5
13.3
PowerPd1=30m（kw）
1.2
2.2
3.8
3.8
5.4
6.8
9.2
16
24.4
28.6
39.9
Speed(r/min)
75
60
45
45
35
35
30
30
20
16
13
CapacityQφ=0.33（m³/h）
1.2
3.8
11
11
17
31.7
46.5
73.0
99.3
139
199
Power Pd1=10m（kw）
0.75
1.1
1.6
1.6
2.1
3.1
3.7
4.6
5.7
7.7
11
PowerPd1=30m（kw）
1.1
1.8
3.4
3.4
4.4
5.6
8
14
16.7
23.2
33
What are the advantages of screw conveyor?
Screw conveyors have a variety of advantages and characteristics，Below are some general benefits of screw conveyor:
They mix bulk material, breaking down large lumps,and deliver a consistent flow of material to the delivery point.
They are utilized in a variety of bulk material handling applications with varying consistences.
They can have multiple discharge and inlet points,making them well-suited to distribute bulk material over different collection points.
They are compact and highly adaptable to congested spaces.
They cause minimal spillage because they conduct bulk material in an enclosed system.
They can be easily designed to serve as heat transfer unites, thereby effectively heating, cooling,or even drying bulk material as it is moved.

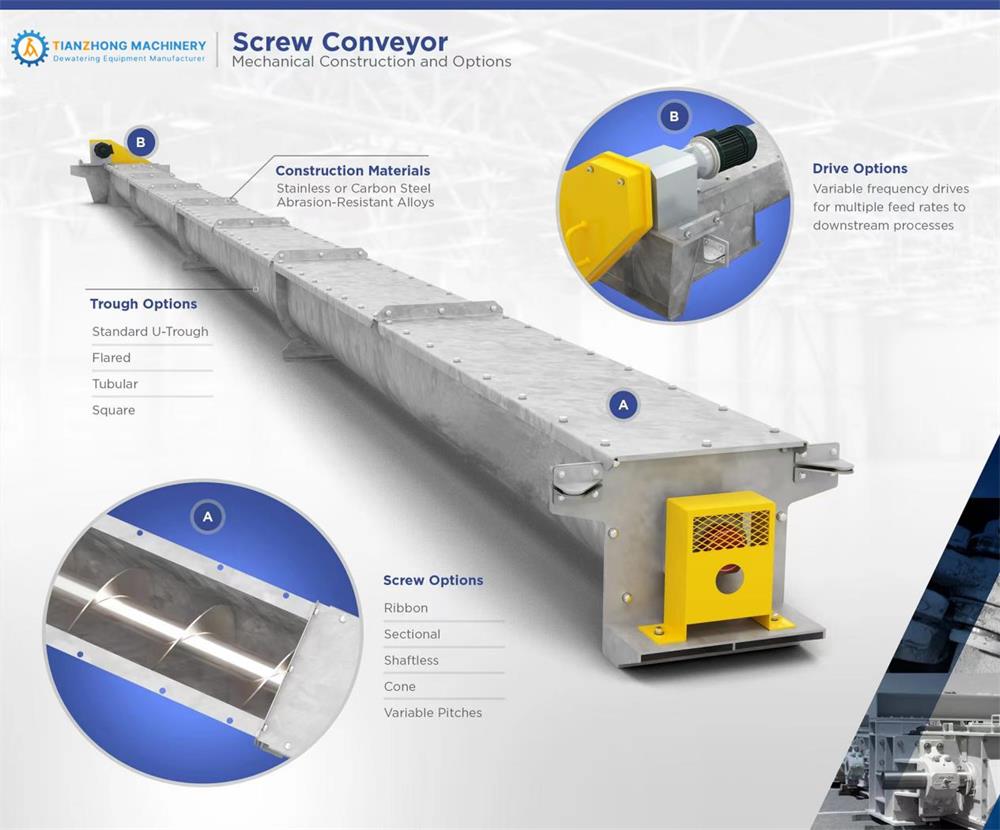

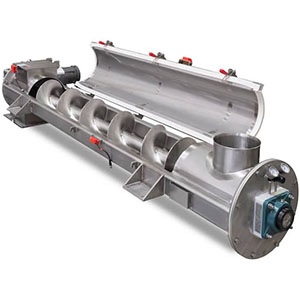

Detailed-Photos

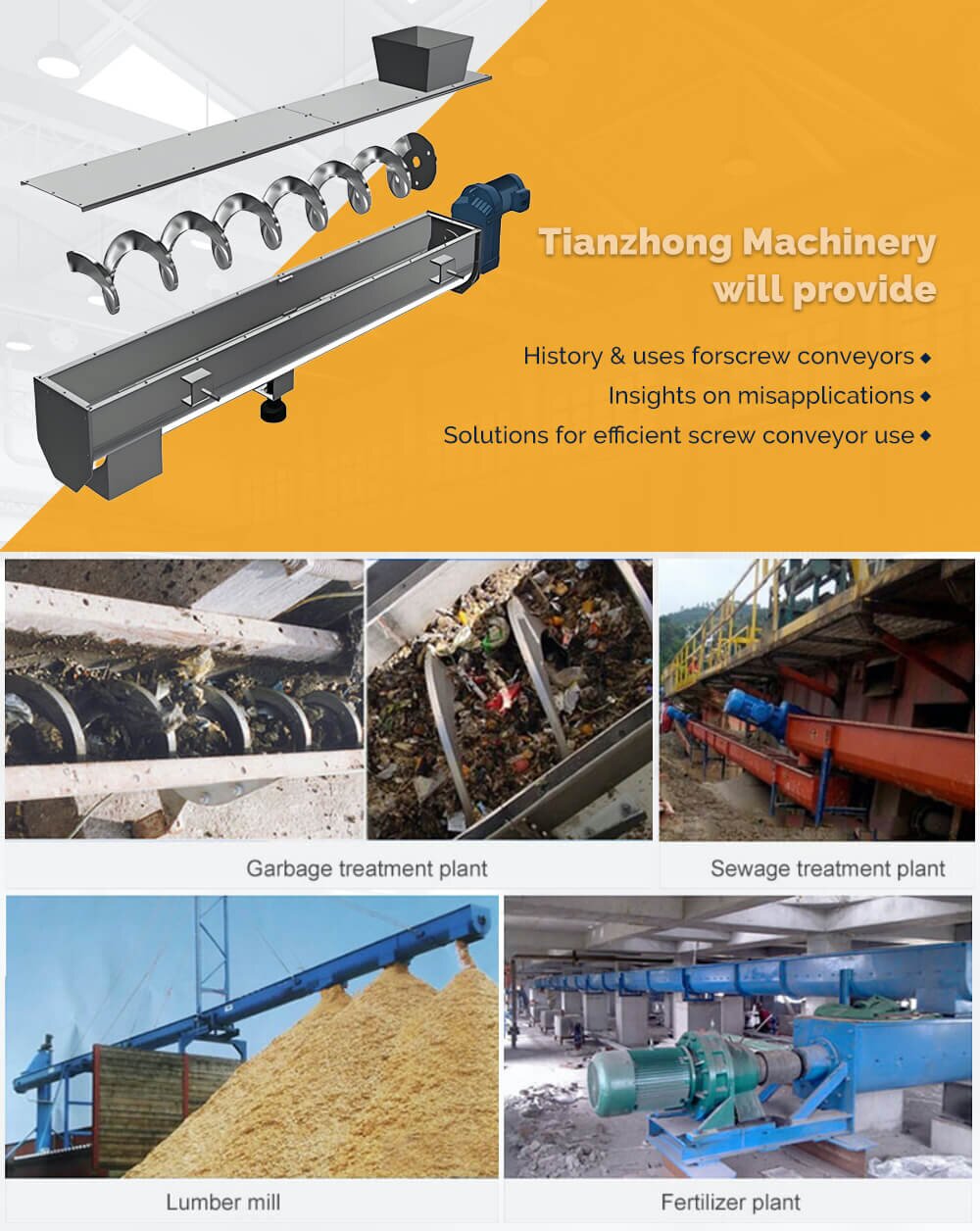

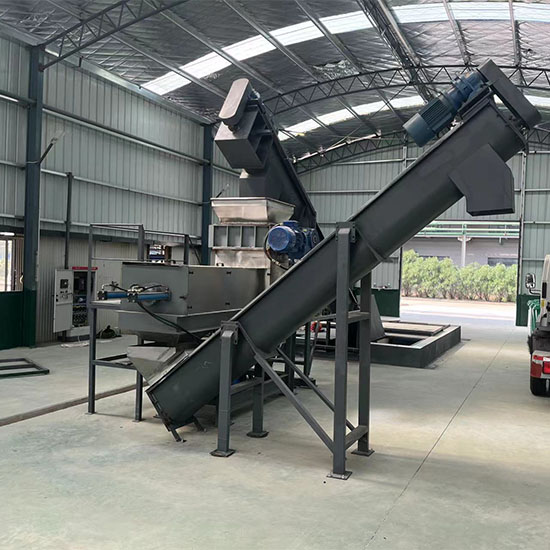

Scope of use

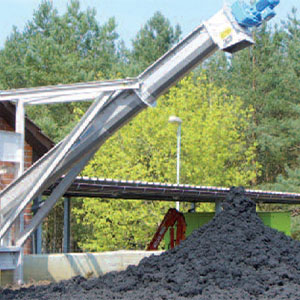

Screw conveyor is suitable for all industries.Such as building material, chemical industry, power industry, metallurgy,coal industry and grain industry, for horizontal or tilted transportation for powdery,granular and small lump materials,such as coal, dust residue, cement and grain which their temperature is less than 20.
