Roller type juice press machine is suitable for juicing kumquat, tangerine, orange, lemon, grapefruit, pomegranate and other fruits without peeling and grading. During the juicing process, the skin and juice are separated automatically.
Roller type juice press machine is suitable for juicing kumquat, tangerine, orange, lemon, grapefruit, pomegranate and other fruits without peeling and grading. During the juicing process, the skin and juice are separated automatically.（It is capable of handling fruits with diameters ranging from 10 to 110 mm. And the processing capacity ranges from 1 to 3 tons/h. Below are more parameters for your reference.)
Special Features
The whole machine are made from food-grade stainless steel, SS304 or SS316, which meets the national food hygiene and safety standard,and can be customized according to customer’s actual production needs.
Our machine offers high efficiency and substantial processing capacity,capable of swiftly handling 1 to 3 tons of citrus fruits per hour.
Stainless steel material also makes the machine easy to clean and offers great durability.
This machine is suitable for a variety of citrus fruits with diameters of 10-110mm, including kumquats, limes, lemons, oranges, grapefruits, etc.
Technical Parameter
Processed orange/lemon
Model
DGJ-1.5
DGJ-3
Power
2.2kw
3.0kw
Capacity
1-1.5t/h
2-3t/h
Fruit diameter
10-110mm
10-110mm
Dimensions(mm)
1250*800*1450mm
1250*1200*1450mm
Weight(t)
350kg
550kg
Processed passion fruit
Model
DGQJ-0.8
DGQJ-1.6
Power
1.5kw
3kw
Capacity
0.5-0.8t/h
1-1.6t/h
External dimensions(mm)
1250*800*1450mm
1250*1200*1450mm
Weight(kg)
350kg
550kg
Instruction manual
To ensure the optimal performance and longevity of the industrial juice machine, please adhere to the following usage and maintenance guideline:
Tighten all bolts and screws on the machine regularly to ensure that the components are securely fastened and to prevent any loose parts that could cause malfunctions or damage.
Regularly clean both the interior and exterior of the machine to maintain its cleanliness.
Before operation, it is important to check the rotational direction of the mixing shaft,and the machine should be operated for a duration of one minute to ensure proper functioning.
Feed the fruits equably for continuous production, and the machine is thoroughly cleaned after each use to maintain hygiene.
It is important to periodically inspect and lubricate bearing,gear, and sprockets,ensuring that the lubricating grease is sufficient.
Working Principle

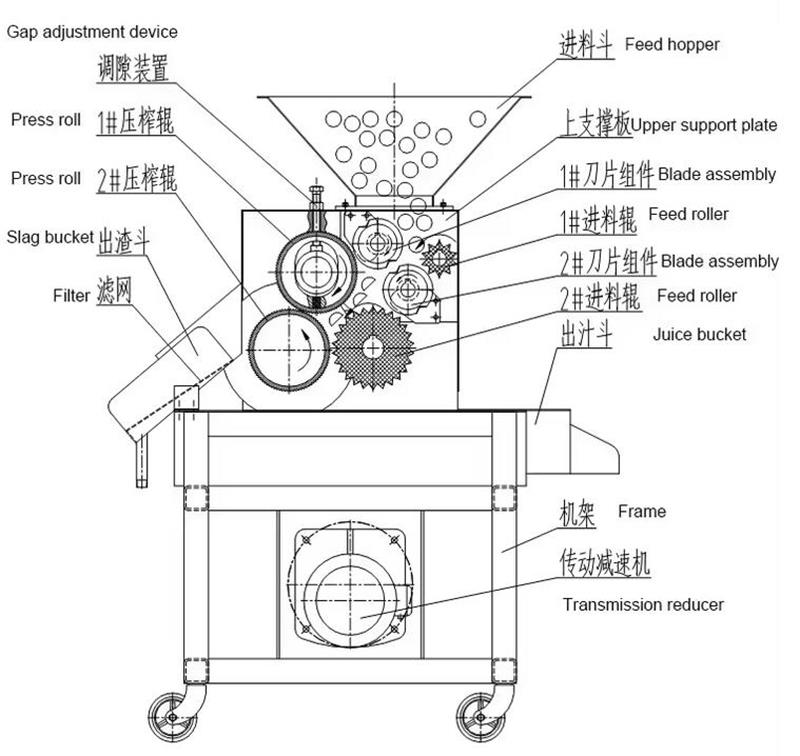

The machine is mainly compose of a frame,transmission reducer, feed hopper, three press roller,,two knife roller,a juice outlet,,slag outlet and other components.
Except for the transmission parts,the whole machine is made of food-grade stainless steel and the blade is 440C.
When the power is turned on,the fruits will fed into the hopper.They will then pass through the first and the second pressure rollers for crushing and broken.then enter the first and third pressure rollers for juice extraction,where the skin is efficiently separated and collected in the peel collector.Meanwhile,the juice and some pulp will flow out through the juice outlet,thus achieving the purpose of juice extraction.

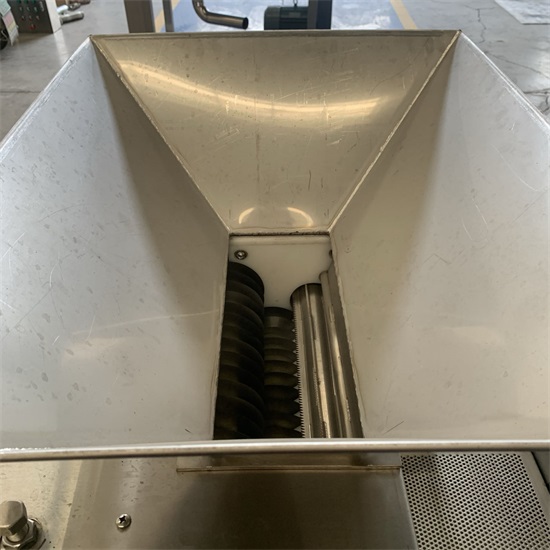

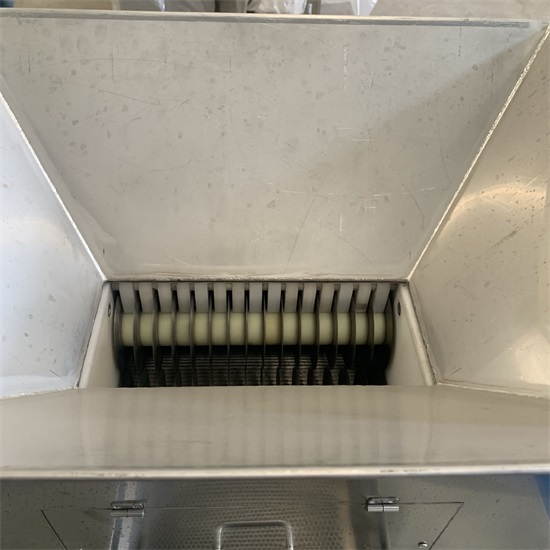

Detailed Photos
Application
This machine is suitable for extracting juice from a wide variety of citrus fruits, including kumquats, lemons, oranges, among others. It is also used to process passion fruits, etc. Its unique design allows for direct juice extraction without peeling or sorting the fruits in advance.
