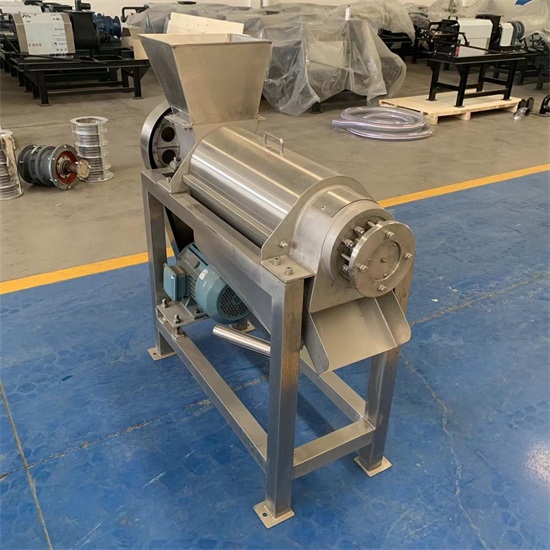

Screw type juice extractor ,also as know as “cold press juice” is primarily used for extracting juice from fruits and vegetables. such as apples, pineapples, ginger, carrots, oranges, pears, blueberries, tomatoes, spinach, and coconut meat after they have been crushed.
It operates at a slower speed and uses a screw to crush and press the produce.After juice extraction,the material’s moisture content is about 60%(varies depending on the material)
Screw type juice extractor ,also as know as “cold press juice” is primarily used for extracting juice from fruits and vegetables. such as apples, pineapples, ginger,carrots, oranges, pears, blueberries, tomatoes, spinach, and coconut meat after they have been crushed.
It operates at a slower speed and uses a screw to crush and press the produce. After juice extraction, the material’s moisture content is about 60%(varies depending on the material)
Special Features
Versatile Application
Spiral press juice machine is an ideal choice for squeezing a variety of fruits and vegetables. including apples, grapes, berries, pears,carrots, tomatoes, spinach, celery etc.
Superior Juice Extraction
Tianzhong screw-type juice extractor ensures maximum juice yield by efficiently squeezing fruits and vegetables. Moreover, the slow rotational speed reduces the generation of heat during the juicing process, to preserve the natural flavor, color, and nutritional value of the juice.
Low moisture
The residual moisture content in the extracted material is approximately50%-60%,varying with different materials.
Food-grade stainless steel
Except for the transmission parts, the remainder of the device is fabricated from food-grade stainless steel.
Easy operation & Maintenance
Extracted juice is separated from waste automatically.
Continuous Working and Powerful capacity
The screw type juice extractor is designed for continuous operation and high efficiency, ensuring an uninterrupted juice extraction process.Furthermore, certain parameters of our machine can be adjusted to meet specific processing requirements, thus ensuring optimal juice quality and yield.
Technical Parameter
Model
Processing Capacity
Power
Dimensions(mm)
Speed of screw(rpm)
Mesh opening size
LZ-0.5
0.5t/h
1.5kw
910*385*810
Approx. 410
φ0.3-2.0 mm, can be customized as per specific requirements
LZ-1.5
1.5t/h
4.0kw
1300*500*1330
LZ-2.5
2.5t/h
11kw
1480*740*1780

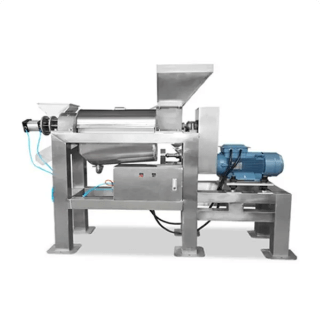

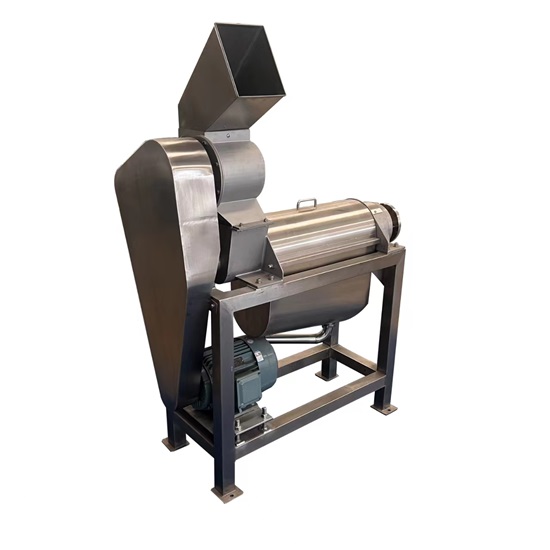

The following models are equipped with shredders
PZJ-0.5
0.5t/h
2.05kw
910*500*1250
Approx. 410
φ0.3-2.0 mm, can be customized as per specific requirements
PZJ-1.5
1.5t/h
5.1kw
1300*650*1380
PZJ-2.5
2.5t/h
12.5kw
1500*700*2000

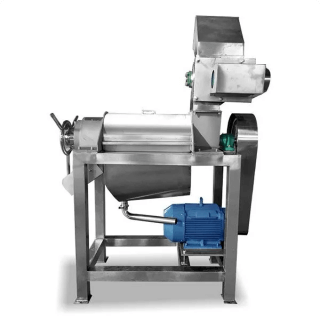

1.5 Ton Screw Press Juicer

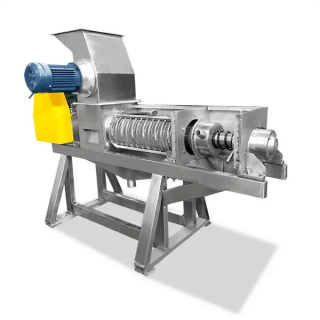

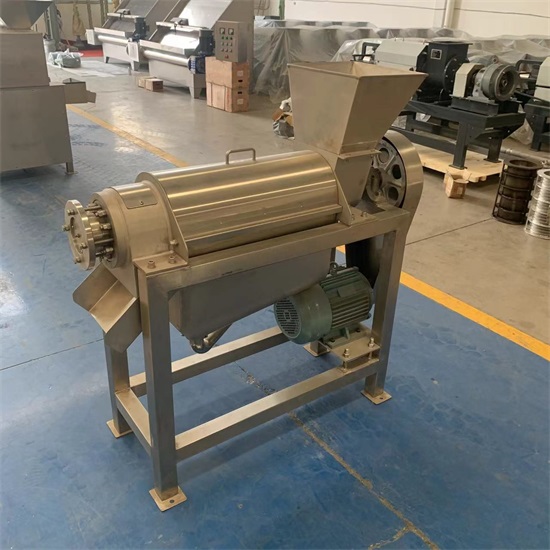

Screw Type Juice Extractor

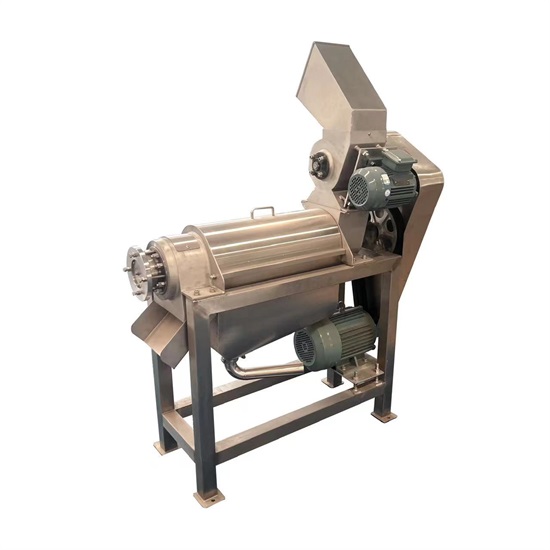

Spiral Juice Extractor
Working Principle
The screw type juice extractor consists of a drive system,feed hopper,screen,screw,juice tank,and residue outlet.
The main component of the equipment is the screw. The bottom diameter increases gradually along the direction of slag outlet and the screw pitch decreases gradually. When the material is pushed by the screw, the material is pressed due to the reduction of the volume of the screw cavity.
Application
Applicability of this machine can be widely used for squeezing pineapple, apple, pear and other fruits; mulberry, grape, orange and other berries; tomato, ginger, garlic, celery and other vegetables.
It is widely used in the fruit processing industry,food and beverage processing plant.
Mango
Green Radish
Sweet Potato
Carrot
Pear
kivi
Respberry
Tomato
Orange
Detailed Photos

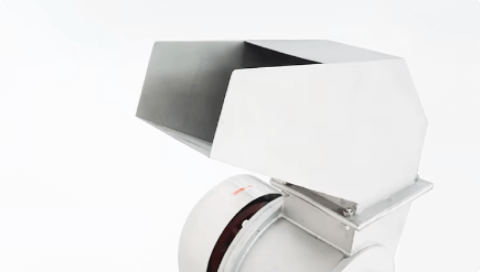

Large Material Inlet

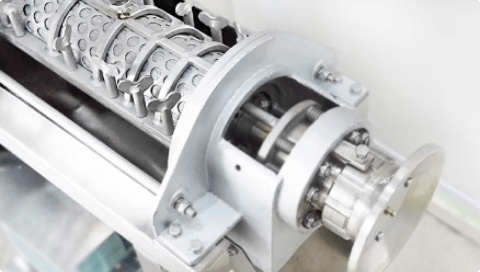

Put the raw material into the hopper , spiral propels under compression, the juice is squeezed from the pulp through filter screen and flowing into the juice holding device at the bottom.The pressing strength be adjusted by handwheel at the end of extractor.

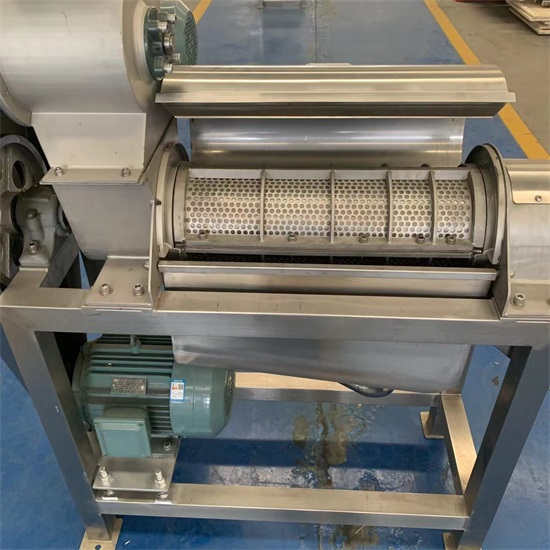

Meticulous Screen
It’s made of form bearing, feeder hopper, screw, filter screen, juice holding device, the rear bearing, slag notch and other parts.

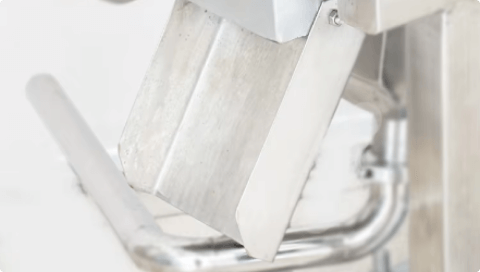

Residue Outlets
Residues such as peel and pulp are discharge from this outlet. The angle of this outlet can be adjusted to adapt to unused screen.

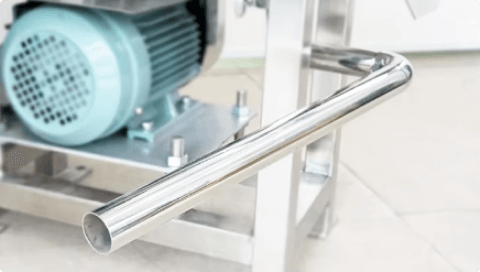

Juice Outlets
Use food grade stainless steel to ensure the cleanliness of the finished product. The direction and length of the guide pipe can be customized for easier loading and unloading.
Tianzhong offers a wide selection of juicer machines,catering to a variety of user needs.
Tianzhong Machinery offers a variety of industrial juicer machines for different types of fruits and vegetables.You can select a suitable machine based on the types and sizes of materials you will be processing.Besides,we also provide related equipment for your optimal choice.We will make the proper solution according to you desired capacity and your budget.Tianzhong Machinery You First Choice, Long Team!
