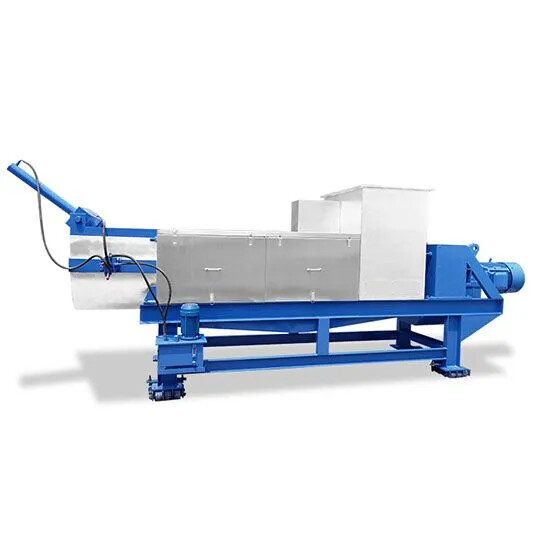

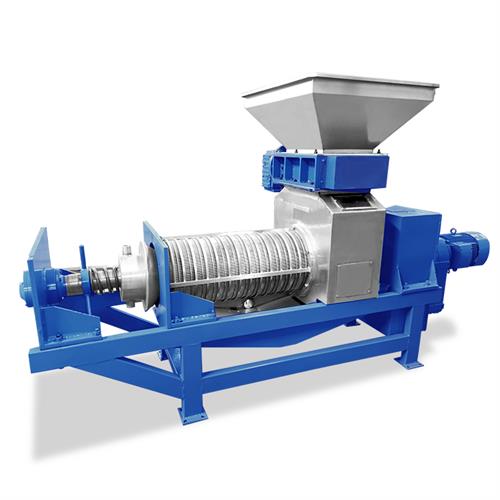

The single-screw press is a single-screw continuous lower speed extrusion with rotating speed of 12rpm.per minute.The parts in contact with material within this unit are all made of high-quality alkali-resistant stainless steel.The equipment uses conventional pressure feeding systems,spiral extrusion,screen cylinder extrusion ,and hydraulic blocking device at slag outlet,which is to achieve the separation of juice and solid.
The single-screw press is a single-screw continuous lower speed extrusion with rotating speed of 12rpm.per minute.The parts in contact with material within this unit are all made of high-quality alkali-resistant stainless steel.The equipment uses conventional pressure feeding systems,spiral extrusion,screen cylinder extrusion ,and hydraulic blocking device at slag outlet,which is to achieve the separation of juice and solid.
The hydraulic system is powered by hydraulic fluid and the size of the outlet of the material is controlled by the piston rod,and the dry humidity of the slag can be controlled according to the requirements.
0.5 Ton
1.5 Ton
3-Ton
5-Ton
10-Ton
20-Ton
Advantage
The single screw press has slow speed, large output, high pressure and high dehydration efficiency.

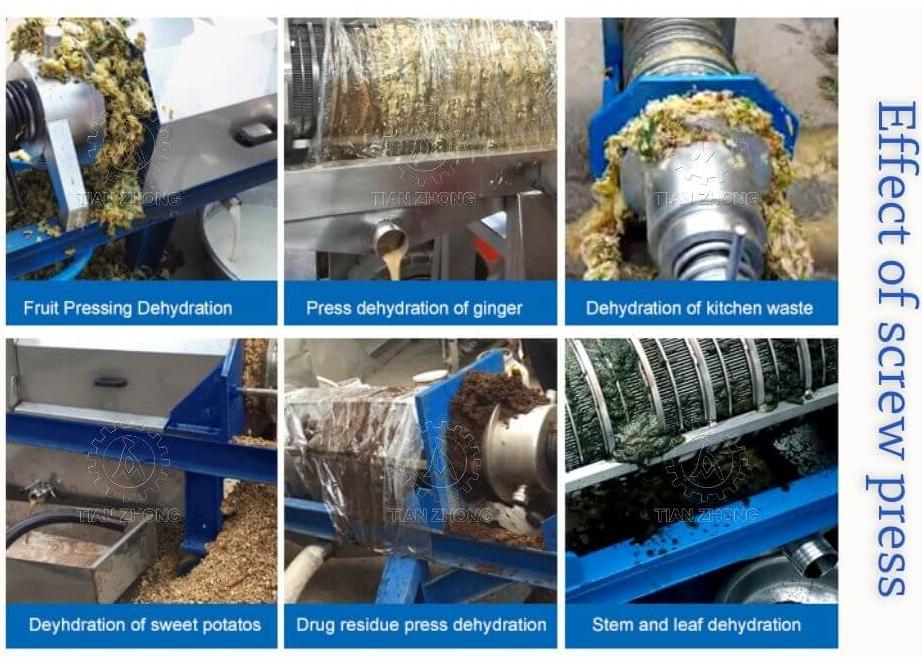

It is suitable for a variety of fiber-rich vegetables and fruits.
It is widely suitable for dehydration and reduction of fruit and vegetable,domestic waste,household waste.
It is suitable for dewatering and squeezing of various waste and residue chemical material.
Technical Parameter
Model
DZJ-5
DZJ-10
DZJ-15
DZJ-20
DZJ-30
DZJ-50
Feeding capacity
3-5t/h
8-10t/h
12-15t/h
17-20t/h
25-30t/h
40-50t/h
Power
15kw
18.5kw
22kw
30kw
45kw
55kw
Spiral diameter(mm)
420mm
500mm
600mm
630mm
700mm
870mm
Screen diameter(mm)
430mm
520mm
620mm
650mm
720mm
900mm
Rotating speed(r/min)
5-12r/min
5-12r/min
5-12r/min
5-12r/min
5-12r/min
5-12r/min
Hydraulic power(kw)
1.5kw
1.5kw
1.5kw
1.5kw
2.2kw
4kw
External dimensions L W X H mm)
4550*960*1500
5050*1100*1550
5600*1200*1650
5800*1300*1750
6500*1450*1950
7200*1530*2450
Weight (t)
2700kg
3500kg
4300kg
5300kg
6500kg
9500kg
Working Principle

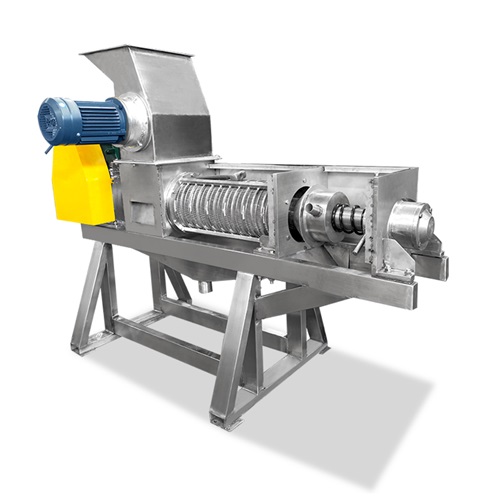

The single-screw press dehydrator is characterized by a solitary screw, which provides continuous dewatering and efficient shredding capabilities.The raw material is fed into the screw press machine,and then the machine starts to work.As the screw rotates, it moves the material from the feeding hopper to the discharge end.During the process, the space gradually decreases while the pressure is increasing. The increasing pressure compresses the material against the screen, forcing the liquid to be separated from the solid particles.
Single-screw
Double screw
Trapered screw
How dose the screw press dewatering machine work?
This screw-type press dewatering machine is used for solid-liquid separation ,dehydration and reduction of waste material, which is a physical squeezing method. The raw material is fed into the screw press dewatering machine, and then the machine starts to work.As the screw rotates,it moves the material from the feeding hopper to the discharge end.During the process, the space gradually decreases while the pressure is increasing. The liquid is then squeezed out through the screen and drain though the drain pipe.The discharge speed and moisture content can be adjusted by the adjustment device in the front of the screw press dewatering machine to meet your specific needs.
Single screw press VS Twin screw press
Single screw press-The single screw press,also know as the continuous screw press,consist of a single helical screw rotating within a cylindrical barrel.This design is simple and suitable for a variety of fiber-rich vegetables and fruits in various industries，such as grapes,gingers,herbal residue，sugarcane and pulp.Additionally,it provides customers with cost-effective solutions for waste treatment and the dehydration of waste materials such as spent grains,agricultural waste,and more.
Twin screw press-When two parallel screws rotate in opposite directions, one screw pushes the material forward, while the other screw exerts pressure on the material against the screen, thereby facilitating the separation of the liquid from the solid particles.In general,we have found that a double screw press has two times the throughput capacity of a single screw press with the same screw diameter.However,a double screw press is more costly,but it has a higher capacity.On the other hand, a single screw press is cheaper,but it has a lower capacity and sieving efficiency.
