The Screw-Type Cow dung separator is ideal for raw materials with a higher liquid content than solid content, such as paper pulp, wine residue from breweries, and livestock wastewater. Tianzhong machinery is focus on providing an innovative design solution for managing dung waste by separating its solid and liquid components.
The Screw-Type Cow dung separator is ideal for raw materials with a higher liquid content than solid content, such as paper pulp, wine residue from breweries, and livestock wastewater. Tianzhong machinery is focus on providing an innovative design solution for managing dung waste by separating its solid and liquid components.
The Cow dugn separator is a valuable tool for livestock farm.After dewatering,it reduces the moisture content in cow dung,resulting in a reduction in volume and odor.More than that,the screw cow dung separator can be improved by the structure and composition of manure and bring high economic benefits to farmers.
The equipment consists of the body,screen mesh,spiral propeller，reducer motor, unloading device and cutting conveyor pump.
Multi-model

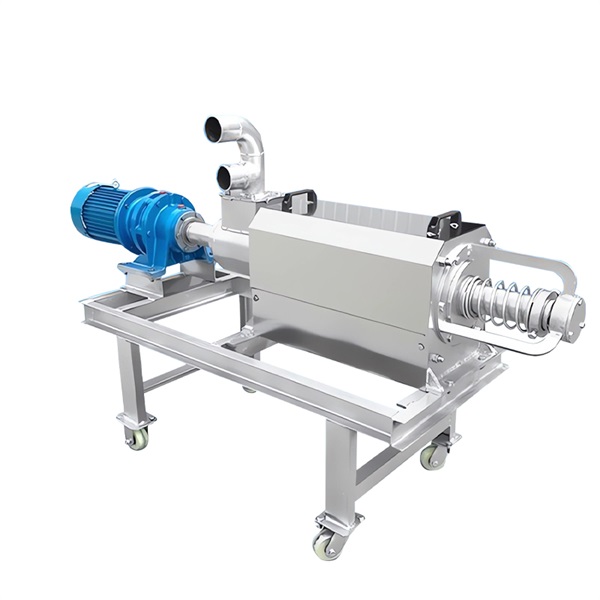

Horizontal Solid-liquid separator

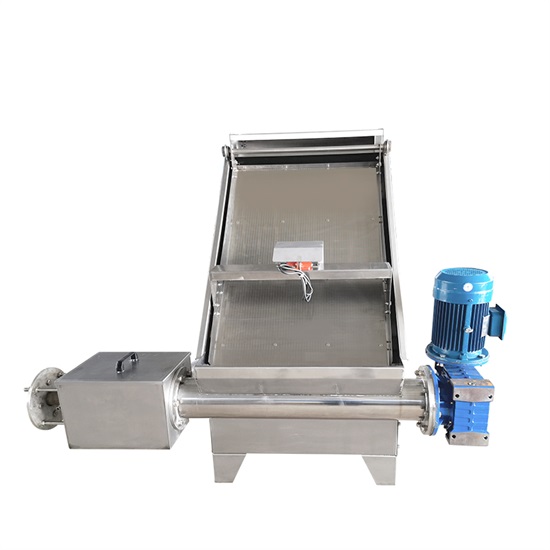

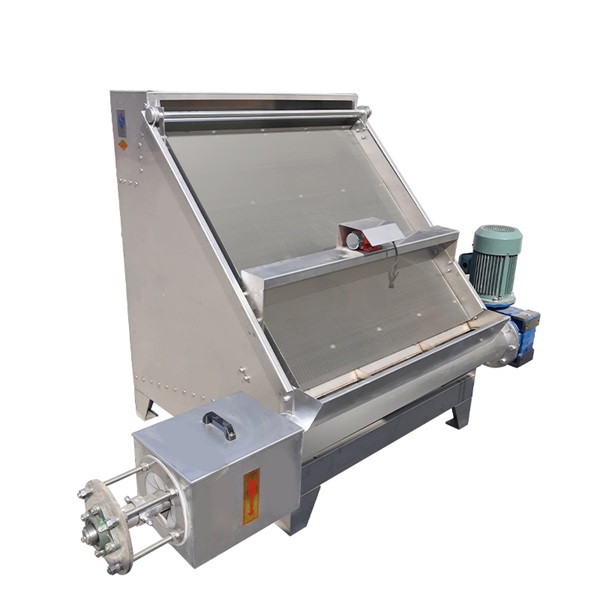

Inclined screen solid-liquid separator
Advantage
Screw-type cow dung separator has small volume,low rotation,simple operation,high efficiency and no need to add any coagulant.
The thick stainless steel spiral shaft features a wear-resistant treatment,ensuring a long service life.The pitch parameter is scientific and reasonable.
Slop screen solid-liquid separator is particularly suitable for materials with a high water content of over 90% and low solid content.(such as pig manure, cow dung,duck manure etc and press separation of slaughter house sewage. )
The electronic control system incorporates overload protection,leakage protection and low voltage protection.
The stainless steel filter mesh is manufactured by strip-shaped high-precision molding process,which has the characteristics of good filtration, anti-clogging and long service life.
Work site real shot
Technical Parameter
Model
TZ180
TZ200
TZ280
TZ1200
Voltage
380V
380V
380V
380V
Power(kw)
4+3kw
4+3kw
5.5+3kw
3+3KW
External dimensions(mm)
2000*600*1300
2200*610*1350
2400*800*1300
2600*1200*1600
Weight(kg)
340kg
510kg
680kg
480kg
Capacity
5-6m³/h
8-10m³/h
12-15m³/h
35-40m³/h
Filter inner diameter(mm)
180mm
200mm
280mm
260mm
Inlet diameter(mm)
76mm
76mm
76mm
76mm
Diameter of overflow port(mm)
76mm
76mm
76mm
760mm
Drain pipe diameter(mm)
110mm
110mm
110mm
160mm
Manure dewatering separator machine
TZ-180 Manure dewatering separator
TZ-230 Manure dewatering separator
TZ-280 Manure dewatering separator
Detailed Photos
Scope of Use
Solid and liquid separation and dewatering of waste residue in various industries.
Pig manure, cow dung, duck manure,etc and press separation of slaughter house sewage.
Bio-pharmaceuticals
Extrusion separation of traditional Chinese. Medicine slag after leaching of particles, powdersand various plant-based traditional Chinese medicine residues etc.
What is the advantage of using an animal manure separator in Agricultural?
You can use an animal manure separator in agriculture for various purpose.

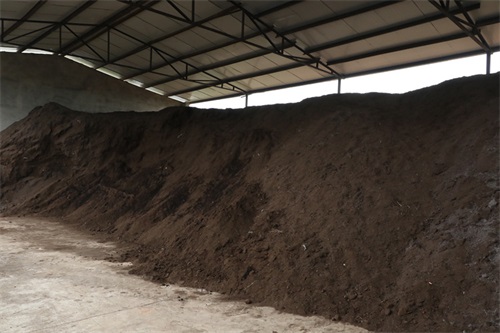

Composted manure: Composted manure is a valuable source of nutrients and organic matter that can be used as a soil amendment in agriculture.
Dewatering: Manure dewatering machine can remove excess moisture from animal manure, making it easier to handle, store, and transport. This dewatering process can also reduce the volume of manure, which is beneficial for environmental management and reduces the risk of nutrient runoff.
Pathogen reduction: Manure separation machines can kill pathogens and reduce the spread of diseases that may be present in animal manure.
Odor control: The separation process can also help control odors associated with manure, which is important for animal welfare and the surrounding environment.
Energy production: In some cases, the organic matter from manure can be used to produce biogas or electricity through anaerobic digestion, which is a renewable energy source.
Soil amendment: Solid Manure Separation can be used as a soil amendment to improve soil fertility,enhances soil structure, increase organic matter content, and provide slow-release nutrients.
Using an animal manure separation machine in agriculture can lead to more efficient and sustainable management of manure, which is an important aspect of modern farming practices.Suitable for apply it on your pig farm,cattle farm,chicken farm or some other animal farms.with this machine,you can turn your animal waste into available organic fertilizers.
As a leading band of manure separator，Tianzhong ,Machinery continuously provide customer with cost-effective solid-liquid separation overall solutions.Welcome to consult at any time!
