The TH Bucket Elevator is a type of vertical conveying equipment that is suitable for lifting materials from low to high.After the material is put into the hopper through a vibrating table ,the machine ascends automatically and continuously.The transmission capacity can be adjusted according to the transmission speed,which is highly flexible and can meet various needs.
We can provide various kinds of Bucket Elevator (lifting machine), pls choose the following which one is suitable for you?

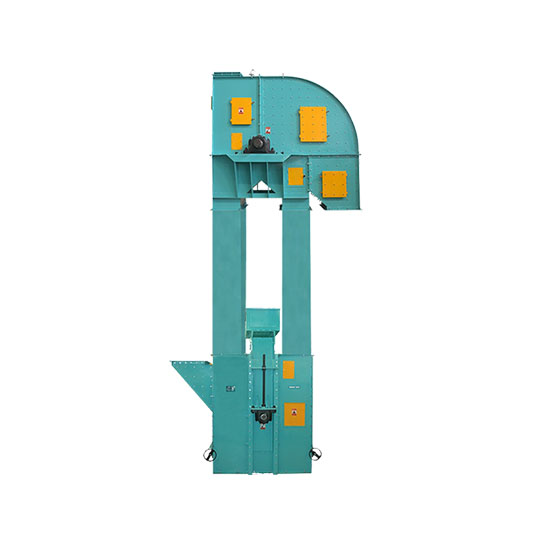

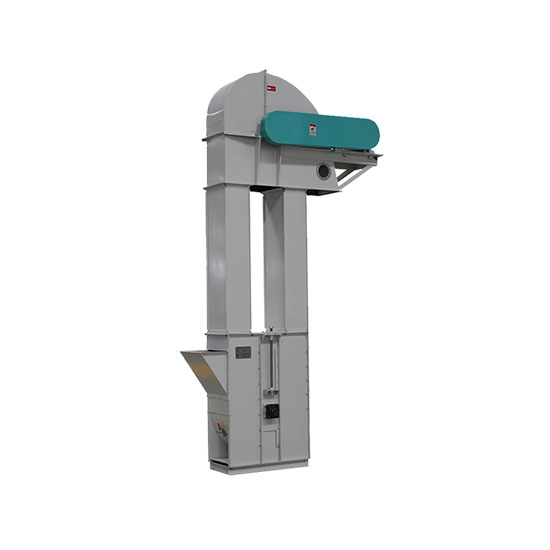

TH Ring Chain Bucket Elevator
NE Plate Chain Bucket Elevator
TB Plate Chain bucket Elevator
TDG/THG efficient bucket elevator
TZD silo bucket elevator
1. This unit is a high-capacity,high-efficiency,and low-cost vertical lifting machine equipped with a chain-driven bucket elevator conveyor.

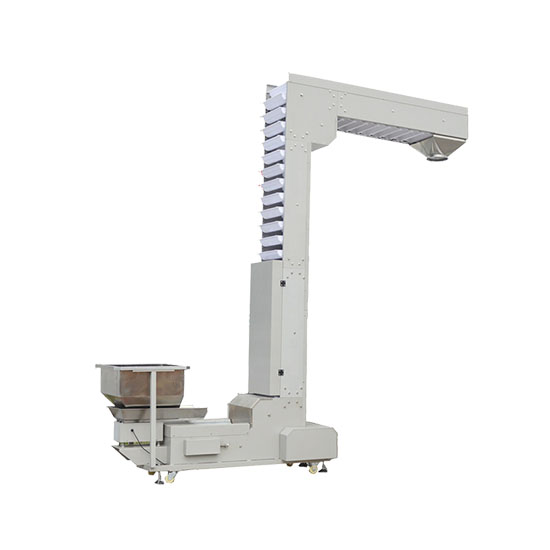

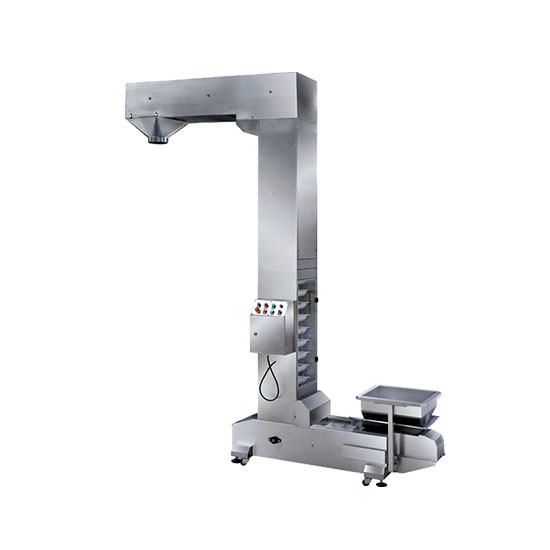

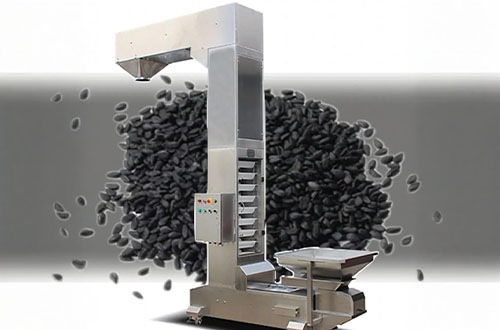

2. Z-Type food-grade stainless steel bucket elevator are highly efficient and saves on labor costs,quickly and evenly distributing materials. This unit is a heavy-duty bulk material handling
3. This unit is a heavy-duty bulk material handling conveyor, designed for the transport of concrete,cement powder,and other similar materials using a bucket elevator lifting machine.
Technical Parameter
Model
Hopper type
Capacity(m³/h)
Hopper
Chain
Rotate speed(m/s)
R/min
Conveyor（mm）
Capacity(L)
Bucket spacing(mm)
Round Steel Diameter × circular pitch(mm)
Breaking strength（KN）
TH160
ZH
19
1.2
350
Φ12×45
≥170
1.3
62.5
20
SH
30
1.9
TH250
ZH
30
3
450
Φ18×64
≥320
1.2
46.8
25
SH
48
4.8
TH315
ZH
35
37.5
512
1.4
42.5
35
SH
59
6
TH400
ZH
58
5.9
37.6
40
SH
94
9.5
TH500
ZH
73
9.3
688
Φ22×86
≥480
1.5
35.8
50
SH
118
15
TH630
ZH
114
14.6
31.8
60
SH
185
23.6
TH800
ZH
150
24
936
Φ24×86
≥560
1.6
30.5
75
SH
240
38
TH1000
ZH
240
38
936
Φ24×86
≥560
1.6
30.5
85
SH
360
6.
TH1250
ZH
360
6.
1001
Φ28×92
≥660
1.6
28
100
SH
540
95
Advantage
This type of elevator is capable of accommodating a diverse array of materials, not only improving the conveying of general powders and small granular materials ,but also enhancing the grinding of large materials with good sealing and minimal environmental pollution.
The hopper has a large volume and a high-density layout.It features a wide lifting range, a high lifting height, and a high transportation capacity.
Each section and maintenance door is equipped with a sealing device to ensure no dust spillage, realizing a clean and friendly environment production.

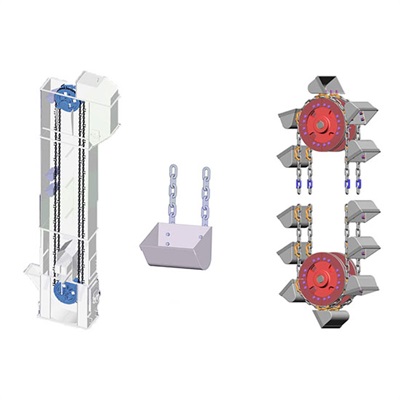

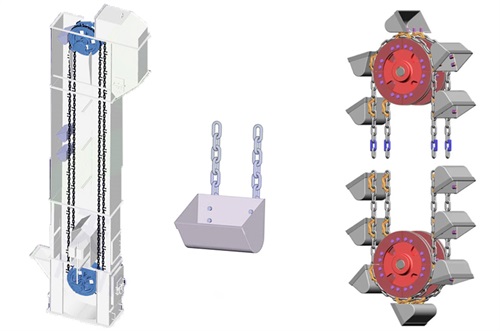

The drive sprocket wheel is an overall structure that has been specially strengthened and processed. It features easy operation,high strength,and wear resistance.
Adopt low-alloy high-strength round ring chain as the driving component.Through specialized technological processing, it processes features such as high anti-pulling strength, excellent wear resistance, durability, reliable hopper connection, and ease of maintenance.
Detailed Photos
Application
Bucket elevators can handle a variety of material,and are therefore used in many different industries and applications.However,they are generally not suited for wet,sticky materials.(Bulk density＜1.5t/m³).
Bucket elevators are frequently found in power plans,fertilizer plants,pulp&paper mills,and steel production facilities.Some of the most common materials for which bucket elevators are widely used in conveying powder,granule and small lumps of no rub or small rub( with material temperature under 250℃),elevating height is 4.82-34m³/h,such as coal,cement,gravel,sand, fertilizer,flour,etc.
Case Display

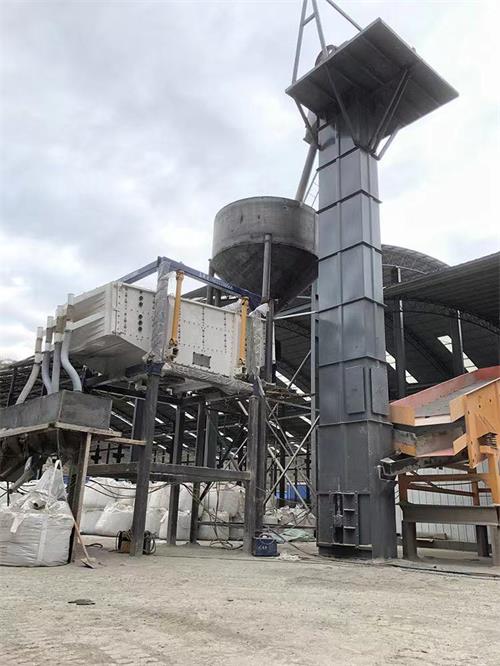

Our Model MTH1250 Chain Bucket Elevator has been put into use at the customer’s site.According to client’s report,these equipment have performed well in field use for 10 years,with essentially no malfunctions.
Tianzhong Machinery adheres to green research and development, green manufacturing, and green marketing, it takes market demand and customer demand as its starting point and introduces innovative products to the market iteratively.
